Outer size (L*W*H)
870mm*600mm*950mm (control box)
370mm*115mm*165mm (spray nozzle)
Spray nozzle diameter: 102mm
Number of holes: 121
Hole diameter: Φ0.5mm
Holes position
1 hole at center
1 inner circles of 12 holes at 300 pitch
4 outer circles of 24 holes at 150 pitch
Outer diameter of water inlet: Φ16mm
Outer diameter of water pipe: Φ28mm
Flow rate: 10L/min±5%
Flowmeter adjustment method: Manual adjustment
Water pressure range: 50-150Kpa
Flowmeter display: Glass flow meter
Capacity of water tank: 150L
Working power: 220V/50Hz
Water source
1. The user is required to configure a water source for the
equipment at the installation site, with a water pressure not less than 0.2Mpa,
and install a 4/8 inch faucet.
2. The faucet is not more than 2 meters away from the
equipment
Requirement for the site: The ground is level, the drainage
is unobstructed, the ground and walls are waterproofed, and the floor drain or
drainage ditch is set

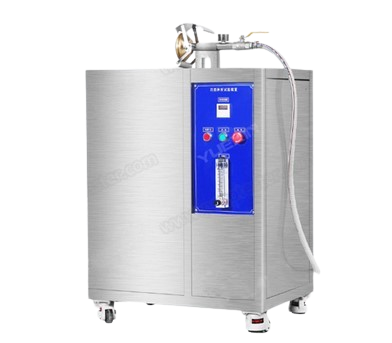

IPX3/4 spray nozzle test equipment can meet the requirement of IEC60529 clauses 14.2.3 and 14.2.4 and figure 5, it is it is apply to verify the protection against spraying water (IPX3) and splashing water (IPX4) for large size sample. The equipment is consisted by spray nozzle, water tank and control box. This equipment is to simulate the raining conditions to check the physical performance of outdoor luminaires, household appliance, auto parts and etc..
