Tube Radius: R600 | R400 | R200
Outer size (L*W*H): 1800*1520*1950 (mm) | 1400*1120*1750
(mm) | 1000*680*1440 (mm)
Inner size (L*W*H): 1300*1300*1300 (mm) | 900*900*900 (mm) |
500*500*500 (mm)
Delivery rate (L/min): 0~3 | 0~2 | 0~1
Bearing: 50KG | 50KG | 50KG
Aperture of nozzles (mm): 0.4
Tube angle: 1200 (IPX3),
3600 (IPX4) or user-defined
Rotation speed of tube: 4s
for 2*1200, 12s for 2*3600 or
user defined
Material of tube: SUS304 stainless steel
Rotation speed of turntable: 1~5r/min
Protection: Electric leakage, hydropenia, short circuit
Working power: 220V, 50/60Hz, 1KW

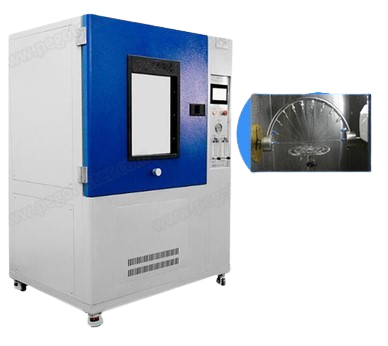

IPX3 and IPX4 waterproof test chamber with oscillating tubes is designed according to IEC60529 clause 14.2.3 and 14.2.4. It is applied to simulate the electronics, luminaire, electric components and auto parts under the conditions of spraying water and splashing water, and then tocheck if they can meet the requirements. This is a chamber-type equipment, the water can be recycled. The radius of oscillating tubes for chamber is R200, R400, R600 and R800. The chamber is configured with a turntable, the bearing capacity of the turntable is 50KG, and it can customized as per user's requirement.
