Control system: 7 inch touch screen+Panasonic PLC
Outer size (mm): 1000*800*1300 (L*W*H)
Water tank: 550L, 800*600*1145 (mm), made by SUS304
stainless steel
Aperture diameter of IPX5 nozzle: 6.3mm
Aperture diameter of IPX6 nozzle: 12.5mm
Delivery rate for IPX5 (L/min): 12.5±0.625
Delivery rate for IPX6 (L/min): 100±5
Water pressure (Mpa): As per the standard requirement
Flowmeter control: Manual control
Distance from specimen: 2.5~3m (manual control)
Nozzle fixed way: Hand-held
Diameter of turntable: Φ600mm
Power of turntable: AC220V
Material: SUS304 stainless steel
Protection: Electric leakage, hydropenia, short circuit
Working power: 380V, 50Hz/60Hz, 3KW

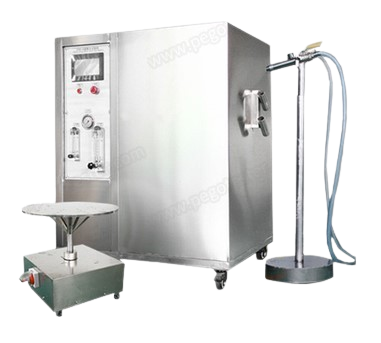

IPX5 and IPX6 Jet Nozzles Water Jetproof Testing Equipment designed according to IEC60529 clause 14.2.5 and 14.2.6. The jet nozzles also be called as hose nozzles. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.
Jet hose nozzle with internal diameter of 6.3mm is for IPX5 jet-proof testing, the water flow rate is 12.5L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m .
Jet hose nozzle with internal diameter of 12.5mm is for IPX6 strong jet-proof testing, the water flow rate is 100L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m
