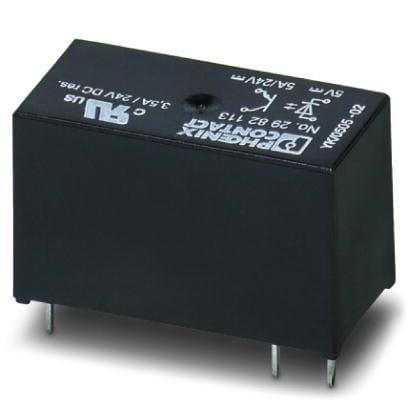

PHOENIX CONTACT 2982100 Miniature OPT-24DC/24DC/5
Manufacturer: PHOENIX CONTACT Model: 2982100 - Contact
Width: 12.7 mm (0.5 in)
Height: 15.7 mm (0.618 in)
Length: 29 mm (1.142 in)
Output Type: MOSFET
Unit Weight: 11.570 g
Contact Form: SPST (1 Form A)
Input Current: 7 mA
Mounting Style: PCB Mount
Termination Style: Solder Pin
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 5 A
Load Voltage Rating: 3 VDC to 33 VDC
Control Voltage Range: 19.2 VDC to 28.8 VDC
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 25 C
