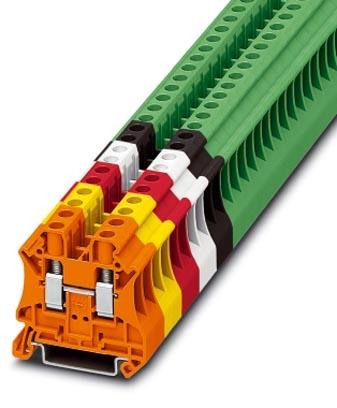

Color: Orange
Width: 8.2 mm
Height: 47.5 mm
Length: 47.7 mm
Unit Weight: 13.804 g
REACH - SVHC: Details
Current Rating: 41 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 1 kV
Wire Gauge Max: 8 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 24 AWG to 8 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
