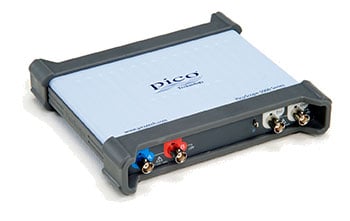

Bandwidth (–3 dB): 100 MHz
Channel: 4
Oscilloscope - vertical
Input type: Single-ended, BNC connector
Bandwidth (–3 dB): 100 MHz
Rise time (calculated): 3.5 ns
Bandwidth limiter: 20 MHz, selectable
Vertical resolution[2]: 8, 12, 14, 15 or 16 bits
Enhanced vertical resolution: Hardware resolution + 4 bits
Input ranges: ±10 mV to ±20 V full scale, in 11 ranges
Input sensitivity: 2 mV/div to 4 V/div (10 vertical divisions)
Input coupling: AC / DC
Input characteristics: 1 MΩ ± 1% || 14 ±1 pF
Gain accuracy: 12 to 16 bit modes: ±0.5% of signal ±1 LSB[3]
8 bit mode: ±2% of signal ±1 LSB[3]
Offset accuracy: ±500 µV ±1% of full scale[3]
Offset accuracy can be improved by using the “zero offset” function in PicoScope software.
Triggering
Source: Analog channels, plus: Ext trigger.
Trigger modes: None, auto, repeat, single, rapid (segmented memory).
Advanced trigger types (analog channels): Edge, window, pulse width, window pulse width, dropout, window dropout, interval, runt, logic.
Trigger types (analog channels, ETS): Rising or falling edge ETS trigger available on ChA only, 8-bit mode only.
Trigger sensitivity (analog channels): Digital triggering provides 1 LSB accuracy up to full bandwidth of scope.
Trigger sensitivity (analog channels, ETS): At full bandwidth: typical 10 mV peak to peak
Maximum pre-trigger capture: Up to 100% of capture size.
Maximum post-trigger delay: Zero to 4 billion samples, settable in 1 sample steps (delay range on fastest timebase of 0 – 4 s in 1 ns steps)
Trigger rearm time: 8-bit mode, typical: 1 μs on fastest timebase
8 to 12 bit modes: < 2 μs max on fastest timebase
14 to 16 bit modes: < 3 μs max on fastest timebase
Maximum trigger rate: 10 000 waveforms in a 10 ms burst, 8-bit mode
