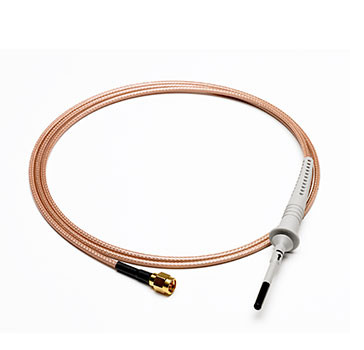

PICO TA061 Low-Impedance Passive Oscilloscope Probe (1.5 GHz, 50 Ω, SMA)
Manufacturer: PICO Model: TA061 - Contact
Connector type: SMA
Attenuation: 10:1
Input resistance: 500 Ω
Input capacitance: 2 pF
Input coupling of the measuring instrument: 50 Ω
System bandwidth (–3 dB): 1.5 GHz
Risetime (10% – 90%): 240 ps
Rated voltage: 12 V DC inc. AC pk
Cable length: 1.3 m (approx. 4 ft 3 in)
Weight (probe only): 48 g (approx. 1.7 oz)
Operating temperature: 0 to +50 °C
Storage temperature: –40 to +71 °C
