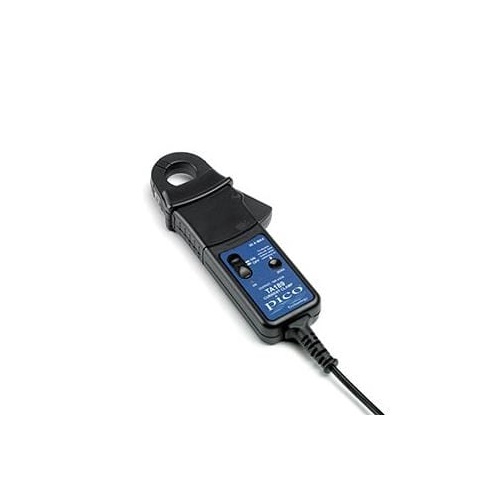

Nominal current: 30 A AC peak or DC
Measuring range: 30 A
Overload capacity: 500 A (60 s)
Output sensitivity: 100 mV/A
Accuracy: ±1% of reading ± 2 mA
Resolution: ±1 mA
Frequency range: DC to 100 kHz (0.5 dB)
Power supply: 9 V alkaline battery PP3, MN1604 or IEC 6LR61
Load impedance (minimum): > 100 kΩ and ≤ 100 pF
GENERAL DATA
Conductor size: 25 mm diameter
Output cable and connectors: 2m long coax cable with safety BNC connector
Operating temperature: 0°C to +50°C
Storage temperature with battery removed: –20°C to +85°C
