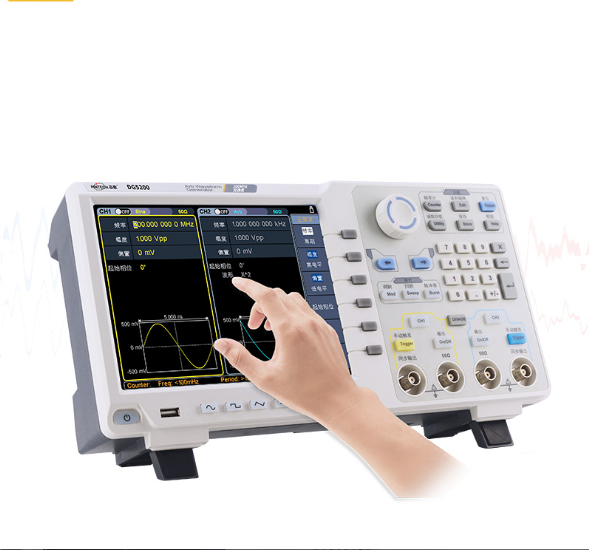

Pintech DG5200 Function Waveform Generator (Dual-channel, DC-200MHz)

Channel: Dual-channel(independent equivalent)

Bandwith: DC-200MHz

Real time sampling rate: 1.25 GSa/s

Waveform:

Standard waveform: sine,square,pulse,ramp,noise

Arbitrary Waveform: There are more than 150 kinds of Sinc, exponential rise,exponential fall,sin(x)/x,step wave,and others,total 150 built-in waveforms,and user-defined arbitrary waveform

Frequency characteristics:

Sine wave: 1μHz-200MHz

Fang Bo: 1μHz ~ 50MHz

Pulse wave: 1μHz ~ 25MHz

Sawtooth wave: 1μHz ~ 5MHz

noise: 120MHz (-3dB, typical)

Arbitrary Wave: 1μHz ~50MHz

Stability: ±1ppm, 0°C - 40°C

Input/output:

Display:  8 inch (800x600) High-resolution TFT LCD display

Method: External modulation, External trigger, External reference clock

Standard Interface: USB Host, USB Device (support USV-TMC), LAN

Dimension (LxHxW): 340x177x90

Weight: 2.5kg
