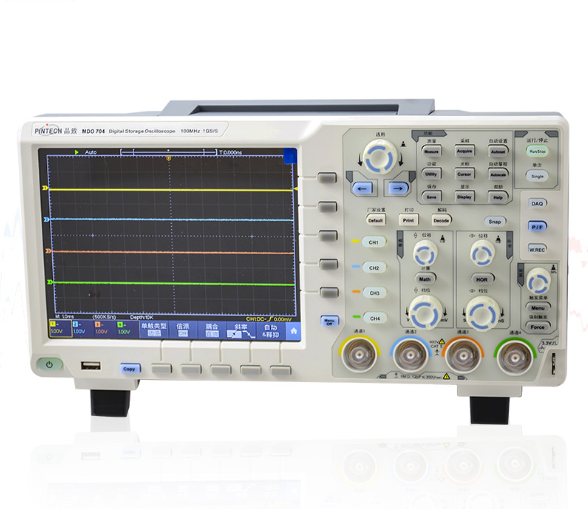

Bandwidth: DC-100MHz
Rea-time sampling rate: 1GS/s
Storage depth: 40M
Vertical resolution: 8bit
Time base accuracy (s/div): 2ns/div - 1000s/div, step by 1-2-5
Rise time（Typical values on BNC）: ≤3.5ns
Channel: 4
Display: 8" color LCD, 800 x 600 pixels, multi-touch support
Input impedance: 1MΩ ± 2%, and 15pF±5pF in parallel
Isolation between channels: 50Hz : 100 : 1, 10MHz : 40 : 1
Input voltage: 1MΩ ≤300Vrms
DC gain accuracy: ±3%
Probe attenuation coefficient: 0.001X-1000X, step by 1-2-5
Low frequency response (AC coupling): ≥5Hz (BNC)
Waveform interpolation: sin (x) / x
Time interval（△T) accuracy of measurement:
Single: ±(1sample interval time+ 1ppm x reading + 0.6ns)
Average >16 : ±(1sample interval time + 1ppm x reading + 0.4ns)
Input coupling: DC, AC , GND
Vertical sensitivity: 1mV/div - 1V/div (at input)
Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Trigger mode: Auto, Normal, and Single
Cursor measurement: Voltage difference between cursors (△V), time difference between cursors (△T)
Waveform calculation: ＋, －, x, ÷, FFT
Waveform storage: 100 groups
Standard interface: USB, Pass/Fail, LAN, VGA (Matching)
Power supply: 100V - 240V AC, 50/60Hz, CAT II
