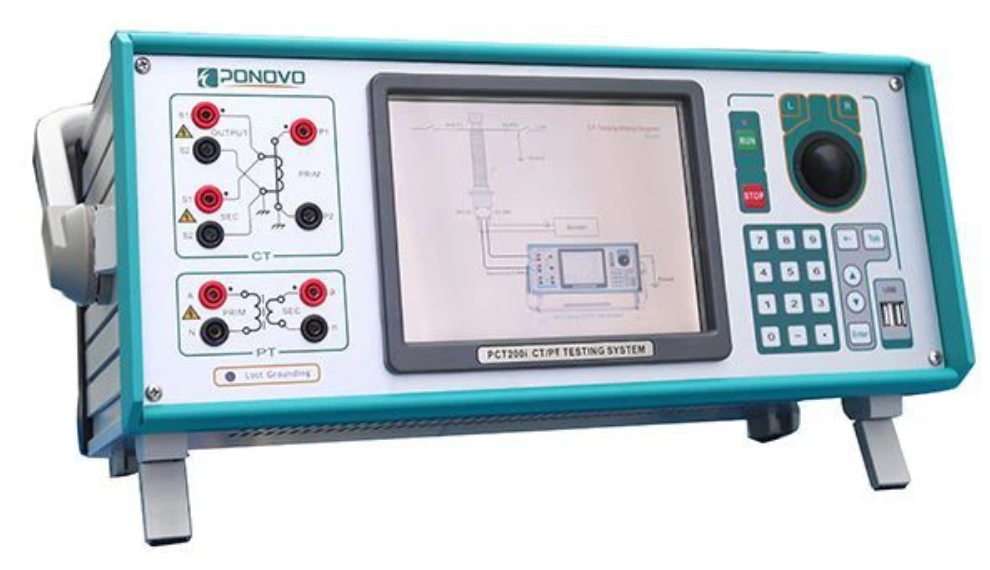

Ponovo PCT200i CT/PT Test System

Output voltage range: 0‐120V

Output current range: 0‐5Arms (15A peak)

Output power: 0.0001VA~500VA (1500VA peak)

Turn ratio range: 1‐30000

Ratio measurement:

30000:1 or 45000:5

accuracy: ±0.05% Typ.; ±0.1% Gur.

Test Points selected: Automatic test of all points according to standard requirement

Phase measurement:

accuracy: 1min Typ. 3min Gur.

resolution:0.01min

Current measurement range: 0‐15 A (auto ranging) ; accuracy: ±0.05%Typ ±0.1% Gur.

Voltage measurement range: 0‐120V (auto ranging); accuracy: ±0.05%Typ ±0.1% Gur.

Polarity: Yes

Winding Polarity Test:Yes (Phase between ±45°)

Winding ratio accuracy: 0.1% or 1 turn

Winding resistance measurement

range: 0.05~1000Ω

accuracy: ±0.05%±1mΩ Typ.; ±0.1%±1mΩ Gur.

Temperature Compensation: ‐20 ℃‐120 ℃

Communication port: USB

Dimension (WxHxD): 470mmx200mmx245mm

Weight: 10kg/14kg

Main supply:

110‐240Vac/50‐60Hz (nominal)

90‐260Vac/45‐65Hz (permissible)

Max.2000VA, Standard AC socket 60320

Operation temperature: ‐10 ℃‐50 ℃

Storage temperature: ‐25 ℃‐70 ℃

Humidity: Relative 5% up to 95%, no‐condensation
