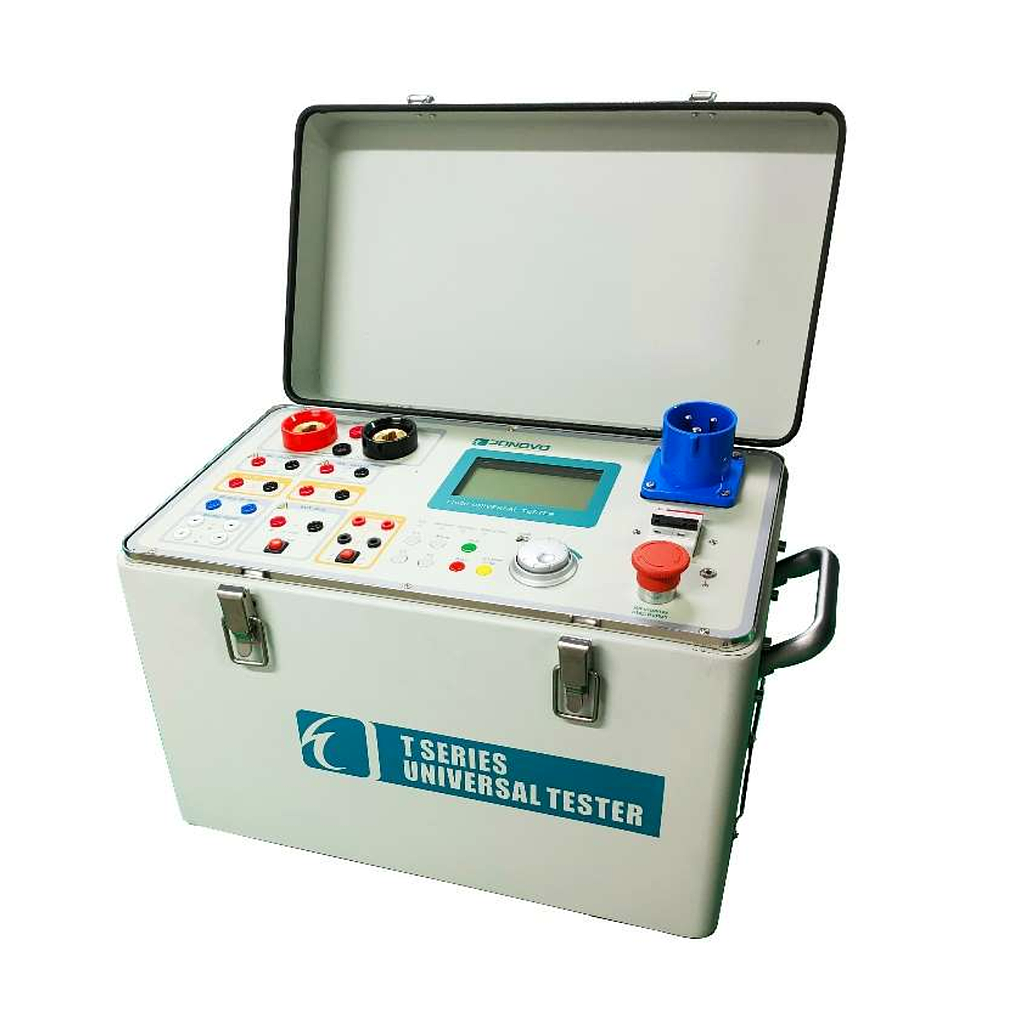

Ponovo T1000 Primary Injection Test Set

High power AC current output (I1)

Range: 2A~50A/ 50A~1000A

Accuracy: ±0.5%

Output voltage: 20V/ 7V

Max Power: 1000VA/ 7000VA

Load time: 1000A 2min

High power AC voltage output (U1)

Range: 10~250V

Accuracy: ±0.5%

Power: 750VA (250V)

Load time: Continuous

High power DC voltage output (Udc)

Range: 10~300V

Accuracy: ±0.5%

Power: 600W (300V)

Load time output: <1A Continuous/ >1A Max 60min

Ammeter

Range: 0~6A AC direct measurement/ 0~2000A AC with external CT

Accuracy: ±1%

Voltmeter

Range: 0-600V AC/DC

Accuracy: ±1%

Binary inputs

Number: 2 (auto detection)

Input characteristic: ±30-±250VDC or potential free

Time resolution: 1ms (0.001-1 s); ±0.1% (1 -9999.999s)

Max. measuring time 9999.999s

Binary output

Number: 1

Break capacity AC: Vmax 250V AC/ lmax 8A / Pmax 2000VA

Break capacity DC: Vmax 250V DC / lmax 8A / Pmax 150W

Power supply

Nominal input voltage: 220V / 240Vac

Permissible input voltage: -20%-+15%

Nominal frequency: 50-60Hz

Permissible frequency: 45-65Hz

Operation temperature: -5 ~ +50° C

Operation humidity: 5-95%, non-condensing

Weight: 30Kg

Dimensions(W×H×D): 260×330×500 mm
