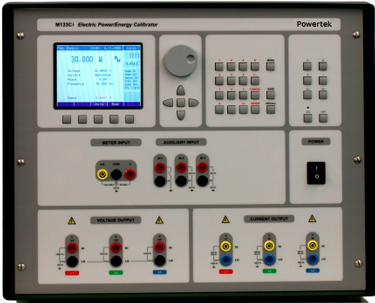

Three phase voltage , current , power factor, power, energy calibrator
- DC/AC voltage
+ Summary range: 1 to 600 Vac, 1 to 280 Vdc
+ Voltage resolution: 5 dig.
+ Frequency range: DC, 15 Hz to 1000 Hz
+ Frequency uncertainty: 0.005%
+ Frequency resolution: 0.001 Hz below 500 Hz, 0.01 Hz below 1000 Hz
+ Distortion: < 0.05 %
- DC/AC current
+ Summary range: 8 mA to 30 A
+ Current resolution: 5 dig.
+ Frequency range: DC, 15 Hz to 1000 Hz
+ Frequency uncertainty: 0.005%
+ Frequency resolution: 0.001 Hz below 500 Hz, 0.01 Hz below 1000 Hz
+ Distortion: < 0.1 %
- Phase and power factor
+ Phase range: 0.0° to 359.99°
+ Frequency range: 15 Hz to 1000 Hz
+ Phase resolution: 0.01°
+ Power factor range: -1 to +1 (Lead, Lag)
+ Power factor resolultion: 0.001
- DC power
+ Summary range: 0.008W to 8400 W (420 kW with current coil option 140-50)
+ Power unit: W
- AC power
+ Summary range: 3x (0.008VA to 18 kVA (900 kVA with current coil option 140-50))
+ Frequency range: 15Hz to 1000 Hz
+ Power unit: W, VA, VAr
- DC/AC energy
+ Voltage range: 1 to 280 Vdc (600 Vac)
+ Current range: 8 mA to 30 A
+ Power factor range: - 1 to + 1
+Time range: 1 s to 10 000 s
+ Time resolution: 0.1 s
+ Time interval uncertainty: 0.01 % + 0.1 s
- Multimeter
+ DC voltage 0 to ±12 V / 0.01 % + 0.01 %
+ DC current 0 to ±25 mA/ 0.01 % + 0.01 %
+ Frequency 1 Hz to 15 kHz / 0.005 %
Dimensions: 500 x 520 x 430 mm
Netto weight: 59 kg
Power supply: 115/230V – 50/60 Hz
Power consumption: max. 1500 VA
Included:
Power cable 1 pc
Option 10 Test cable banana-banana 1m 1000V/32A black: 3 pcs
Option 11 Test cable banana-banana 1m 1000V/32A red: 3 pcs
Option 12 Test cable banana-banana 1m 1000V/32A blue: 3 pcs
Option 13 Test cable banana-banana 1m 1000V/32A yellow : 3 pcs
RS232 cable 1.5m: 1 pc
Spare fuse: 1 pc
Option 133-01 High current adapter: 1 pc
Operation manual, CD" 1 pc
Test report: 1 pc
