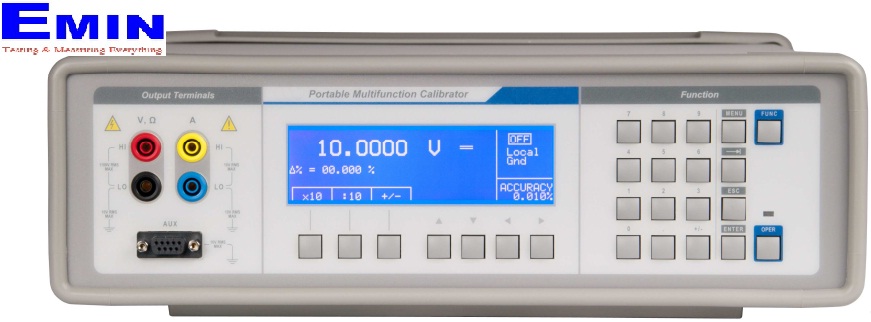

Model MC143
Manufacture: Powertek
Warranty: 12 month
Wide voltage range from 0 to 1000 V DC/AC with accuracy 0.007 %
• Extended current range from 0 to 20 A DC/AC with accuracy 0.02 % in version MC143,
range from 0 to 2 A AC/DC in version MC143i
• Extended current range to 1000 A using Option 140-50 Current coil for calibration of clamp
ammeters
• Sinusoidal & Non-sinusoidal waveforms
• Fix standard resistors 10 Ω to 100 M Ω in decimal values with calibration accuracy 0.02 %
• Thermocouple temperature sensor simulation R, S, B, J, T, E, K, N in range from 250°C to
1850°C
• Cold junction automatic compensation using external Pt1000 sensor
• RTD temperature sensor simulator as option
• Power supply voltage 115/230V at 50/60 Hz
• Interface RS 232, IEEE488 (optionally)
• Small dimensions, overall weight 9 kg
Content of Delivery
MC143/MC143i Portable Multifunction
Calibrator Test Lead 1000V/20 A length 1m,
2 pcs Power Line Cord
Powertek Calibration Certificate
Opt 143-60 RTD Simulator option (optionally)
Opt 143-90 Pt1000 External Temperature Sensor
RS232 Cable
Operation Manual
