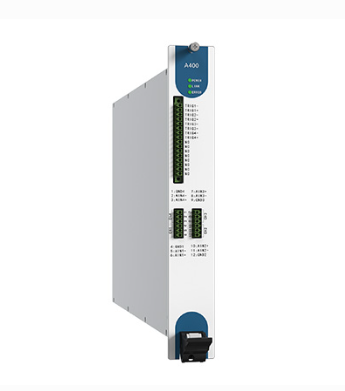

Precise A400 Multi Channel Data Acquisition Daq Card Board High Speed (4 CH, 2 MS/s)
Manufacturer: Precise Model: A400 - Contact
Channel: 4
Max sampling rate: 2 MS/s
Sampling frequency: configurable
Input resistance: 1GΩ
Input voltage range: ±0.625V、±1.25V、±2.5V、±5V、±10V、±12V
Mainframe communication: RS-232/GPIB/LAN
Separate each channel from each other. Withstand pressure between channels > 500V
High precision and multi - voltage range
Support variable speed sampling, up to 2MS/s
16 bit A/D resolution
Supports mass data storage
Software wide compatibility, support
Labview, C/C++, etc
