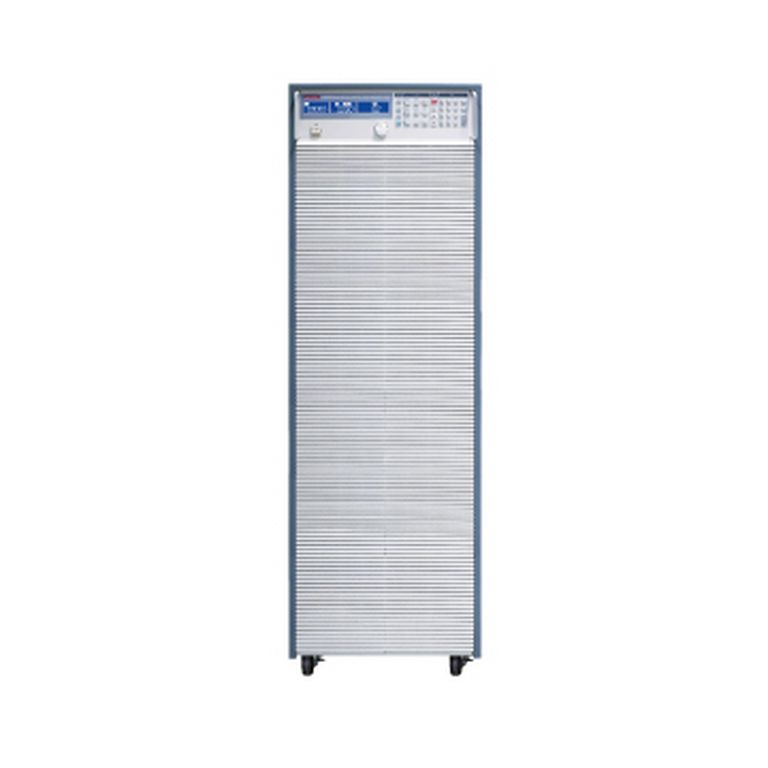

Manufacturer: Prodigit Electronics - Taiwan
Model: 33806
Warranty: 12 months
Power input: 35KW
Current input: 280A
Voltage input: 600V
Display: V, A, W
Feature
● Compact size (1608H*448W*764Dmm) posses 40KW load capability
● 5 digit V/A/W Meter
● High-speed measurement and communication transmission
● Large LCD Display、setting values can be adjusted by rotary knob or push button
● Voltage 、Current and Watt value can be displayed simultaneously
● Capable for Power Factor Correction (PFC) Test
● OCP 、 OPP test function automatically
● Power ON status can be set
● CC, CR, CV, CP, Dynamic and Short operation mode
● SHORT time setting
● Protections against V,I,W, and ℃
● Voltage meter display the polarity positive (”+”）or negative（”－”）is selectable
● Optional Interface: GPIB、RS232、USB、LAN
Description
‧3380 Series has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB, RS232、USB and LAN interface.
‧SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
