Power: 5KW
Current: 0~50A/0~500A
Voltage: 0~120V
Min.Operation Voltage: 0.2V at 50A/2V at 500A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~50A/0~500A
Resolution: 0.843mA/8.43mA
Accuracy: ±0.1%
CR mode:
Range: 14400~0.24Ω/0.24~0.004Ω
Resolution: 69.444uS/4uΩ
Accuracy: ±0.2%
CV mode:
Range: 120V
Resolution: 2mV
Accuracy: ±0.05%
CP mode:
Range: 500W/5000W
Resolution: 8.34mW/83.4mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 12V/12~120V, ±0.025%
Current : 0 ~ 50A/50~500A, ±0.1%
Power : 0 ~ 500W/5000W, ±0.125%
Short circuit current: 500A
Dimension (HxWxD): 577 x 647 x 766 mm
Weight: 100 kg

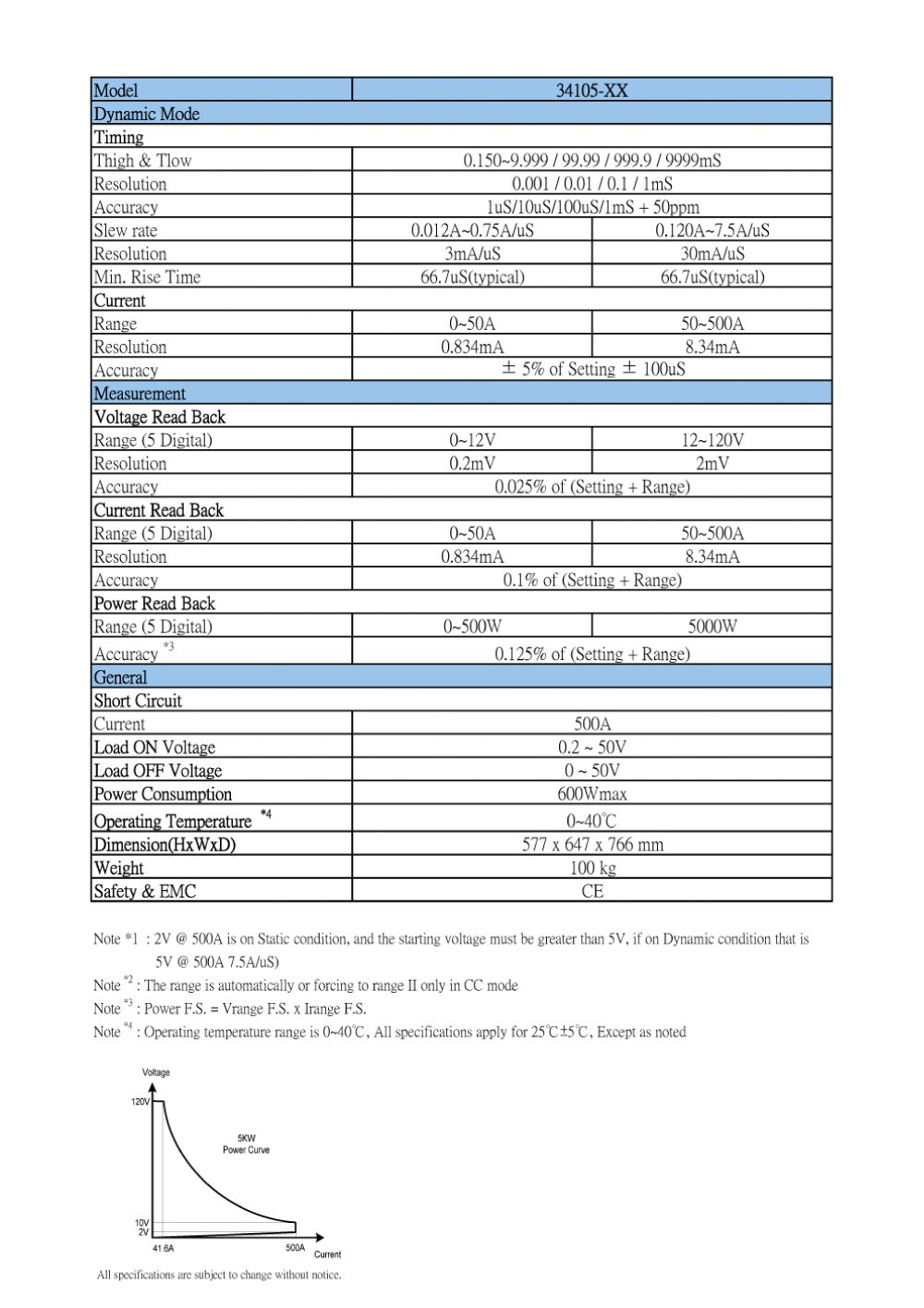

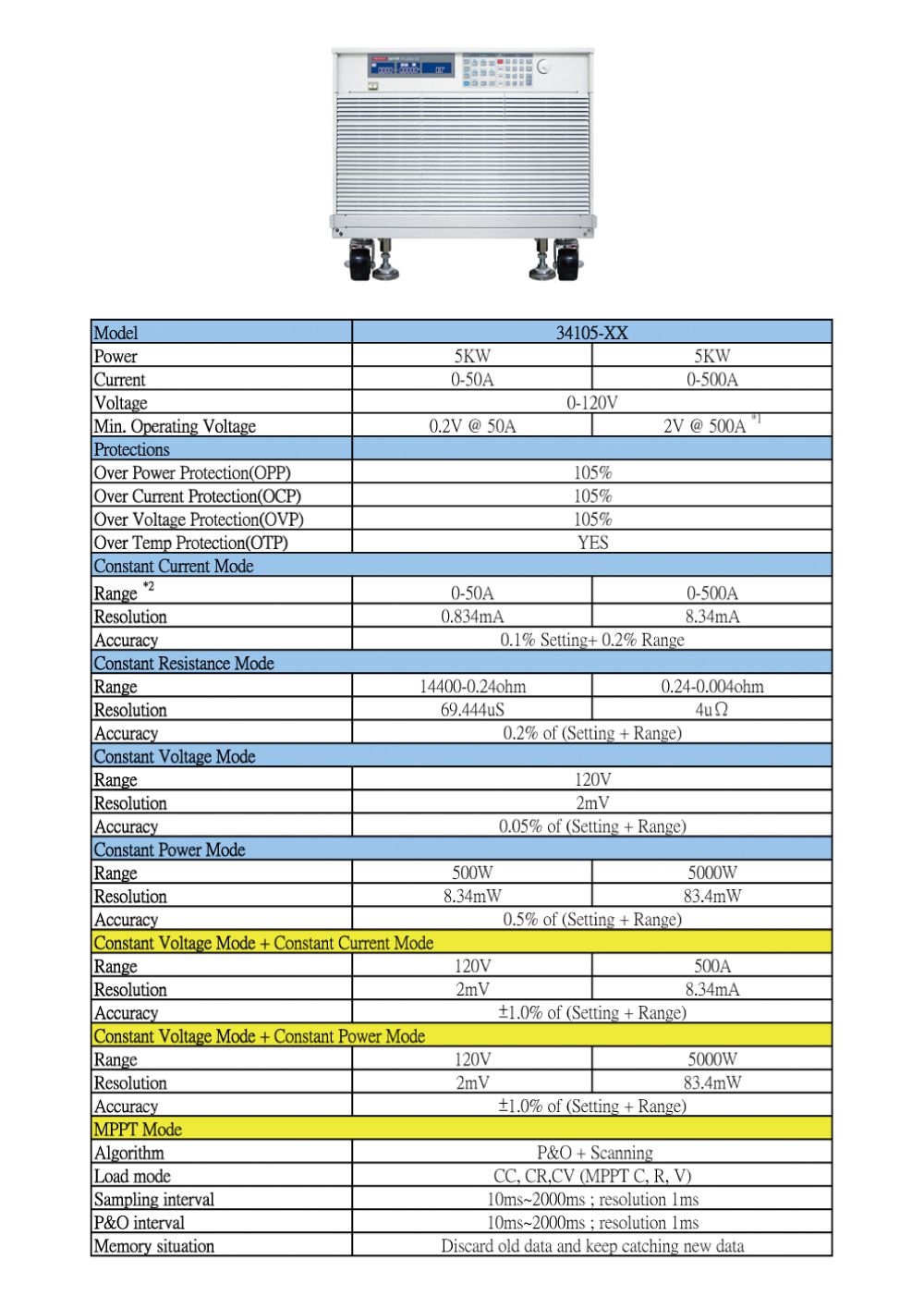

Datasheet
