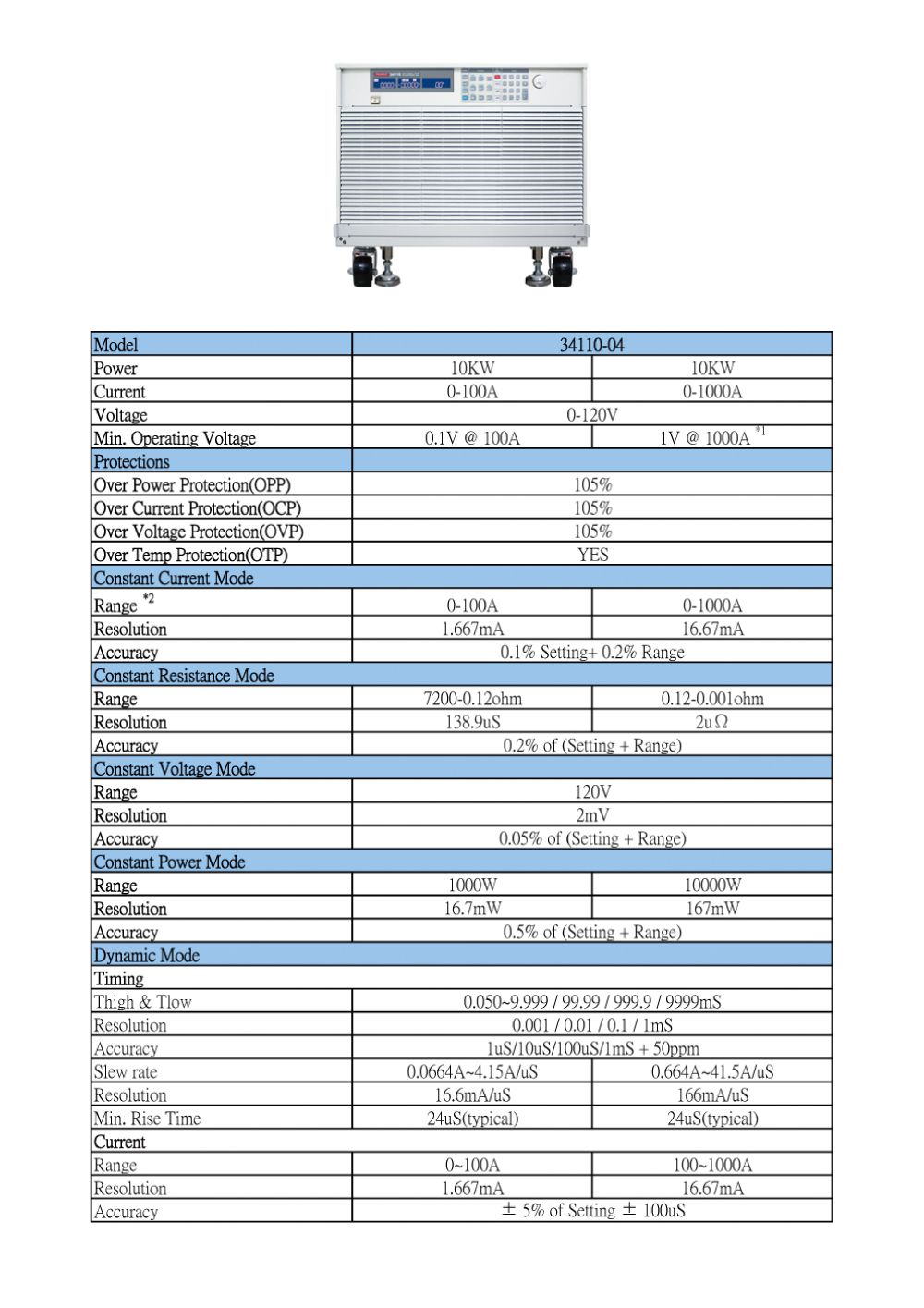

Power: 10KW
Current: 0~100A/0~1000A
Voltage: 0~120V
Min.Operation Voltage: 0.1V at 100A/1V at 1000A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 105%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~100A/0~1000A
Resolution: 1.667mA/16.67mA
Accuracy: ±0.1%
CR mode:
Range: 7200-0.12Ω/0.12-0.001Ω
Resolution: 138.9uS/2uΩ
Accuracy: ±0.2%
CV mode:
Range: 120V
Resolution: 2mV
Accuracy: ±0.05%
CP mode:
Range: 1000W/10000W
Resolution: 16.7mA/167mA
Accuracy: ±0.5%

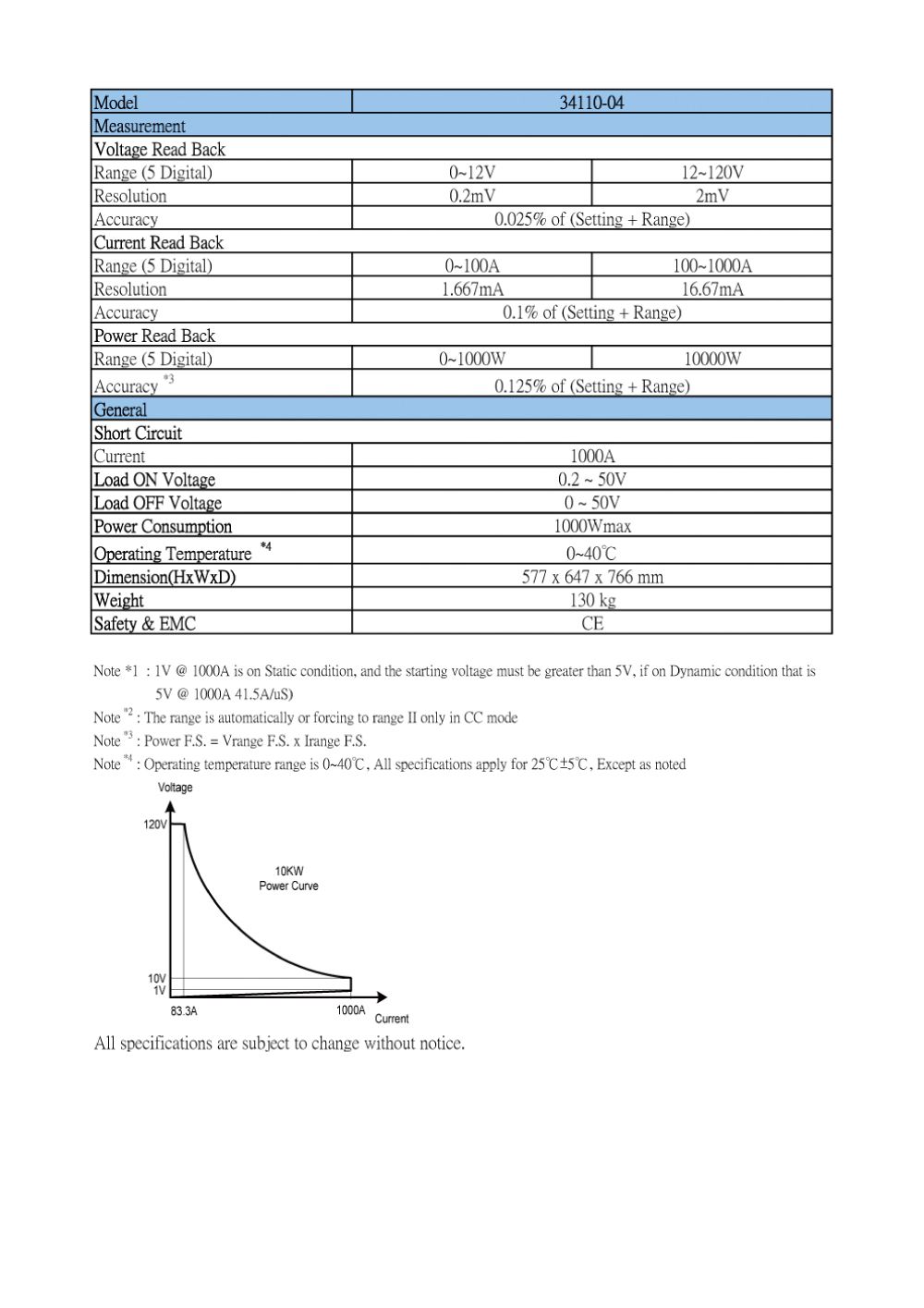

Measurement mode (Load):
Voltage: 0 ~ 12V/12~120V, ±0.025%
Current : 0 ~ 100A/100~1000A, ±0.1%
Power : 0 ~ 1000W/10000W, ±0.125%
Short circuit current: 1000A
Dimension (HxWxD): 577 x 647 x 766 mm
Weight: 130 kg
Datasheet
