Power supply: 24 Vac/dc ±10 %
Power consumption: < 1.2 W
Pressure measurement: * factory setting
Range: ±25 / ±50* / ±100 / ±500 / 0...25 / 0...50 / 0...250 / 0...1000 Pa
Accuracy: 0.4 % ±0.4 Pa (from applied pressure, including: general accuracy, linearity, hysteresis, long term stability, and repetition error)
Temperature compensation: Measurement is temperature compensated when ambient temperature is 0...50 °C.
Response time (T63): *0.4 s / 8.0 s, selectable via jumper (typical, 63 % of the change)
Overpressure
Proof pressure:10 kPa
Burst pressure:30 kPa
Measuring element:MEMS, no flow-through
Measurement units:*Pa
-D models:*Pa, kPa, mbar, inchWC, mmWC, psi
Zeroing automatic: zeroing or manually by pushbutton
Pressure fittings
Type: barbed fitting, male
Size: Ø5.2 mm
Material: brass
Analogue outputs: The device has 1 voltage output connector and 1 current output connector.
Voltage output: * factory setting
Range: *0...10 V / 2...10 V, load > 1 kΩ
Accuracy accuracy after a 30-minute warm-up time: ±0.025 V at 25 °C
Current output
Range 4…20 mA, load 20...500 Ω
Accuracy:
accuracy after a 30-minute warm-up time: typically ±0.04 mA at 25 °C, load 100 Ω
max. ±0.1 mA at 25 °C, load 20...500 Ω

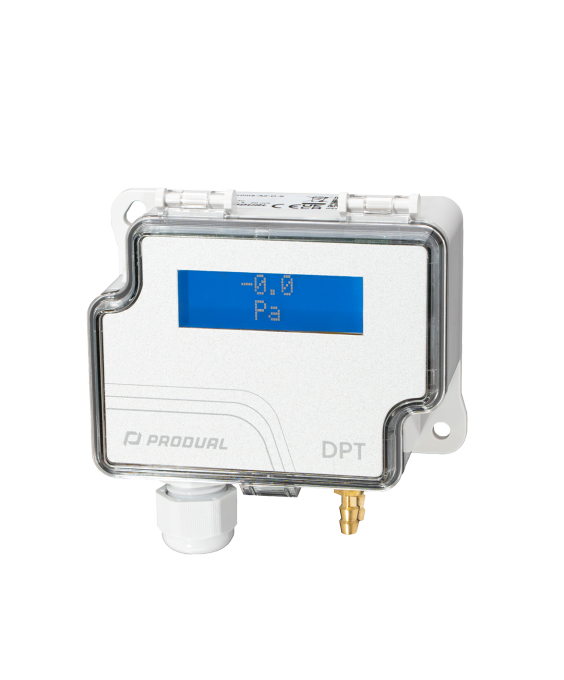

Display (-D models): 2-line, backlit display, 46.0 x 14.5 mm. Shows measured pressure value and measurement unit.
Wiring terminals
Type: tilted screw terminals
Wire: 0.2...1.5 mm2 (24...16 AWG)
Tightening torque: 0.4 Nm
Operating conditions
Ambient temperature: -5...50 °C
Storage temperature: -40...70 °C
Ambient humidity: 0...95 %rH (non-condensing)
Compatible media: dry air or non-aggressive gases
Housing
Protection class: IP54, cable downwards
Cable gland: M16
Materials: ABS and PC plastic (housing), silicone (tubing)
Mounting: 2 x Ø4.3 mm screw holes, one slotted
Dimensions (w x h x d): 90 x 95 x 36 mm
Weight: 140 g
