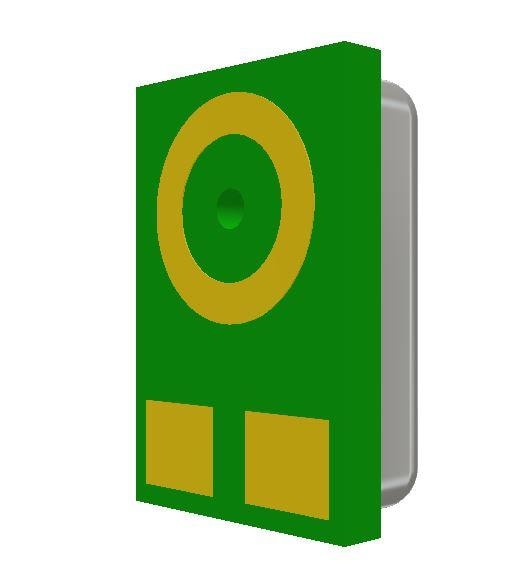

PUI Audio AMM-3538-2-B Analog MEMS MICROPHONE -38DB 2VDC
Manufacturer: PUI Audio Model: AMM-3538-2-B - Contact
Depth: 1 mm
Shape: Rectangular
Width: 2.65 mm
Length: 3.5 mm
Impedance: 300 Ohms
Dimensions: 3.5 mm x 2.65 mm x 1 mm
Output Type: Analog
Sensitivity: - 38 dB
Mounting Style: SMD/SMT
Frequency Range: 20 Hz to 20 kHz
Termination Style: SMD/SMT
Sound Pressure Level: 160 dB
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.6 V
Directional Properties: Omnidirectional
Operating Supply Current: 200 uA
Operating Supply Voltage: 2 V
SNR - Signal to Noise Ratio: 66 dB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
