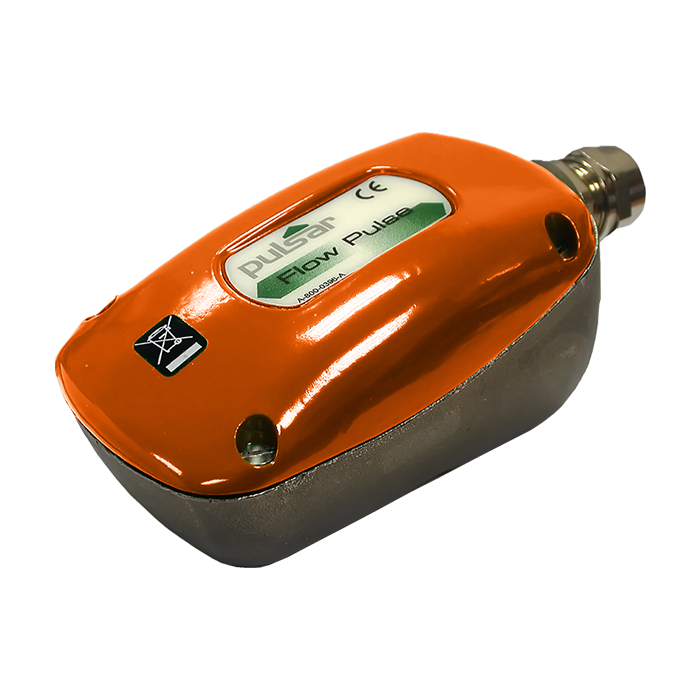

Pulsar measurement FlowPulse Sensor Ultrasonic Clamp-on Flow Sensor (0.3 m/s - 4.0 m/s (0.98 ft/s - 13.12 ft/s))
Manufacturer: Pulsar measurement Model: FlowPulse Sensor - Contact
Sensor Body Dimensions: 120 mm x 65 mm x 65 mm (4.75 in x 2.6 in x 2.6 in)
Weight: 1.5 kg (3.3 lbs)
Maximum Separation: 500 m (1,640 ft)
Operating Temperature (Electronics): -20 °C to +70 °C (-4 °F to +158 °F)
Velocity Range: 0.3 m/s to 4.0 m/s (0.98 ft/s to 13.12 ft/s) standard version or 0.3 m/s to 10 m/s (0.98 ft/s to 32.81 ft/s) high flow version
Pipe Wall Thickness: Metal or rigid pipe up to 20 mm (0.8 in) thick
Power Supply: 18-28 V DC
