Pulse Electronics PA0806NL Power Transformers 1500V 153uH DCR=17.5mOhms | EMIN.COM.MM

Power Transformers
Pulse Electronics PA0806NL Power Transformers 1500V 153uH DCR=17.5mOhms

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

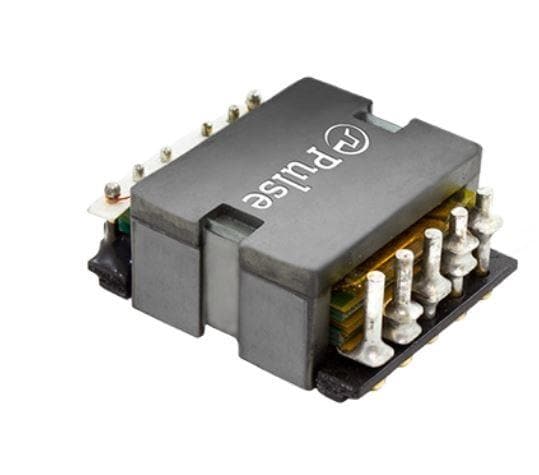

Product image

Pulse Electronics PA0806NL Power Transformers 1500V 153uH DCR=17.5mOhms

ManufacturerPulse Electronics(View more products from this manufacturer)

ModelPA0806NL

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 23.37 mm

Height: 8.85 mm

Length: 21.6 mm

Inductance: 153 uH

Turns Ratio: 4:4

Power Rating: 140 W

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Operating Frequency: 200 kHz to 700 KHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
