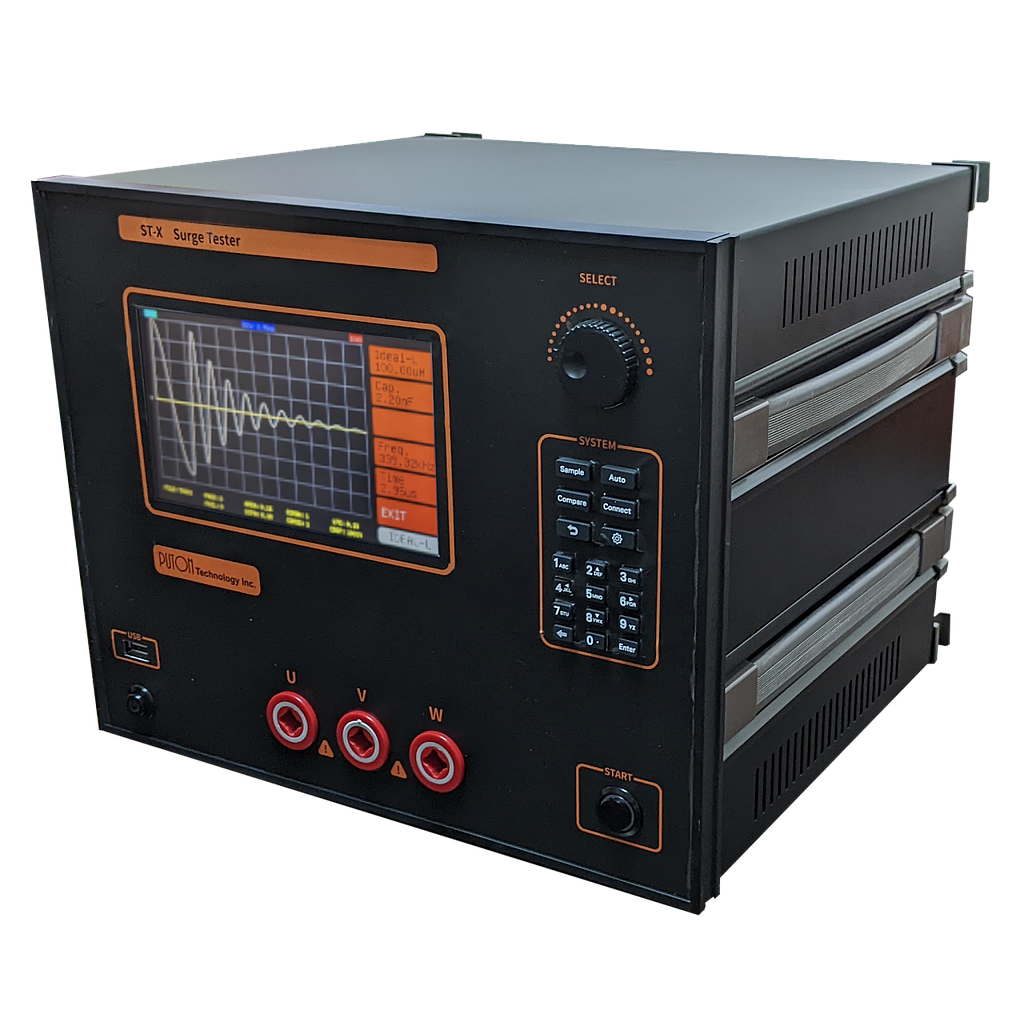

Puton ST-T-10K Three-Phase Surge Tester (500V ~ 10,000V)

Test Voltage: 500V ~ 10,000V (±5% ±20V), 100V step

Output Energy: 1.1J (Max)

Sampling Rate: 600 × 12bits/5ns (200MHz)

Input Resistance: 10MΩ

Display: 800 × 480, 7" touch TFT-LCD

Waveform Types: Reference waveform, Test waveform, Corona discharge waveform

Waveform type and measurement: Area Size Comparison (AREA), DiffZone Comparison (DIF), Comparison Corona Number Comparison (CORON), Corona Amount (COROS), Lenz Percent Error (LPE), Corona Discharge Current Pulse (CDCP)

Judgement Modes: I Test Coil Mode, ITPM Three-Phase Motor Mode

Storage Waveforms: Internal 20 sets, external USB available for CSV format

Comparison Output: Pass/Fail display, Buzzer

Communication: RS-232, I/O, TCP/IP

Operation Temperature: 0°C ~ 40°C (32°F ~ 104°F)

Voltage, Frequency: AC100V ~ 240V, 50/60 Hz

Dimension LWH: 340 × 328.4 × 270 mm

Weight: 14Kg

Application: Electric vehicle motor power inductors, power chokes, transformers, inductors, coils, winding product manufacturers, winding component IQC

Standard Accessories: Main unit x1, High voltage test line x3, AC power cord x1

Optional Accessories: RS-232 to USB cable x1, Ethernet cable x1, foot switch x1
