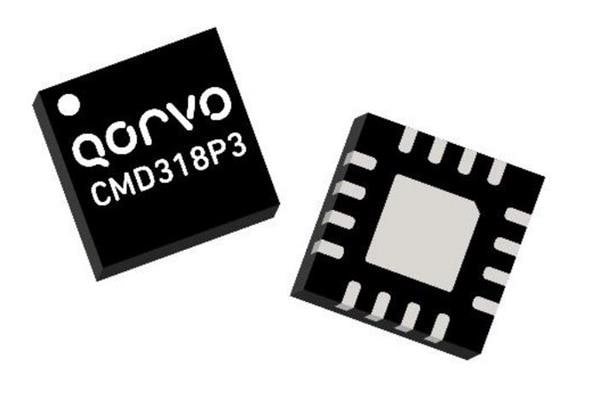

Qorvo CMD318P3 Low Noise Amplifiers 8 GHz Low Noise Amplifier
Manufacturer: Qorvo Model: CMD318P3 - Contact
Gain: 22 dB
Technology: GaAs
Mounting Style: SMD/SMT
Test Frequency: 8 GHz
Input Return Loss: 12 dB
NF - Noise Figure: 1.25 dB
Number of Channels: 1 Channel
Operating Frequency: 5 GHz to 9 GHz
Pd - Power Dissipation: 390 mW
Operating Supply Current: 33 mA
Operating Supply Voltage: 3.6 V
P1dB - Compression Point: 14 dBm
OIP3 - Third Order Intercept: 25.5 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
