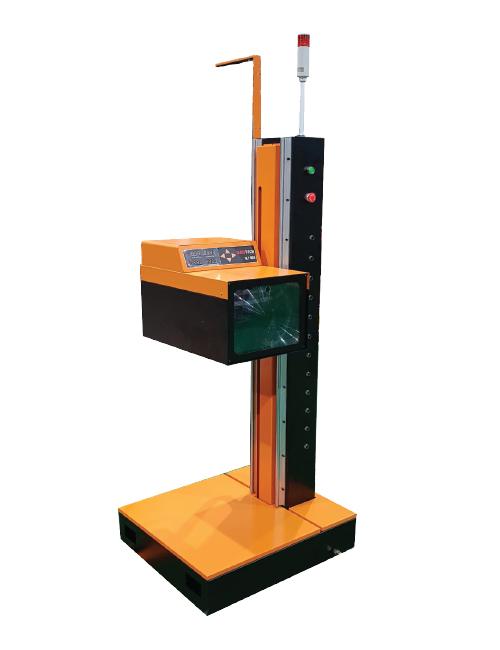

Measurement method: CMOS camera, Automatic
Measurement items: High beam, low beam (optional)
Measuring distance: 1 m
Luminous intensity: 0 ~ 120,000 cd
Beam angle:
Up: 0–350 mm / 10 m (0 ~ 2°)
Down: 0–525 mm / 10 m (0 ~ 3°)
Left: 0–525 mm / 10 m (0 ~ 3°)
Right: 0–525 mm / 10 m (0 ~ 3°)
Communication: RS232
Dimension: 830 × 750 × 1,600 mm
Weight: 95 Kg
Power: AC 220V ± 10%, 50/60Hz
5 million pixel CMOS camera measurement
High beam & low beam measurement
Automatic alignment by camera and photocell
Halogen, xenon, LED measurement of motorcycle and vehicle
Safe inspection by warning light and alarm sound
Automatic pass/fail judgement
Measurement of hot point or cut-off line
