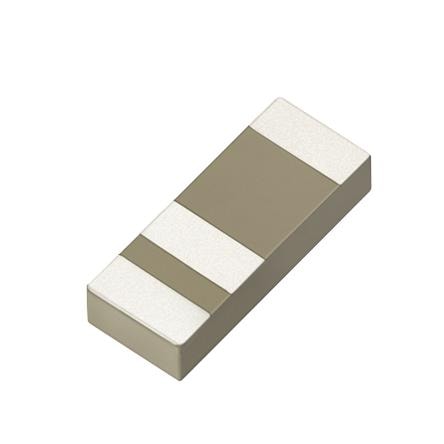

Quectel YC0011AA Passive Antenna Embedded, 2400-2500 MHz, 5150-5850 MHz, Wi-Fi (Bluetooth), Ceramic, -, -, SMD, 5.0 2.0 1.0
Manufacturer: Quectel Model: YC0011AA - Contact
Gain: 4 dBi
Style: Ceramic
Width: 2 mm
Height: 1 mm
Length: 5.2 mm
Impedance: 50 Ohms
Application: Cellular Radio, Wireless Applications
Mounting Style: PCB Mount
Number of Bands: 2 Band
Center Frequency: 2.45 GHz, 5.5 GHz
Mechanical Style: Chip
Maximum Frequency: 5.85 GHz
Minimum Frequency: 2.4 GHz
Termination Style: SMD/SMT
Protocol - Sub GHz: IoT, ISM
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
