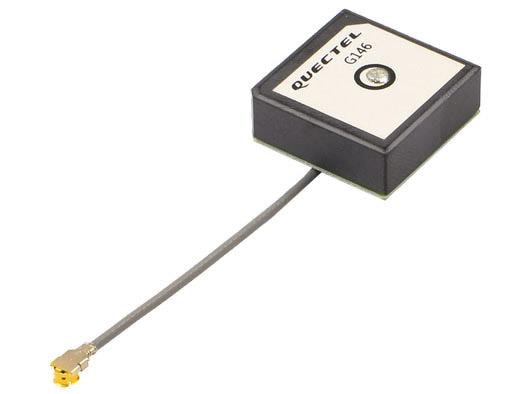

Quectel YG0021AA Active Antenna Embedded, 1560-1605 ( when covered with a radome on LNA ground plane ), GNSS L1&B1&G1 (active), Ceramic, 42 +/-3, IPEX I, Cable Mounting, 18.4 18.4 8.86
Manufacturer: Quectel Model: YG0021AA - Contact
Gain: 2.5 dBic
Style: Ceramic
Width: 18.4 mm
Height: 8.86 mm
Length: 18.4 mm
Impedance: 50 Ohms
Cable Type: 50 mm RF1.13
Application: Satellite Navigation, Satellite Tracking
Polarization: RHCP
Mounting Style: PCB Mount
Number of Bands: 1 Band
Center Frequency: 1.575 GHz, 1.602 GHz
Mechanical Style: Patch
Maximum Frequency: 1.605 GHz
Minimum Frequency: 1.56 GHz
Termination Style: SMD/SMT
Antenna Connector Type: IPEX MHF1
Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
