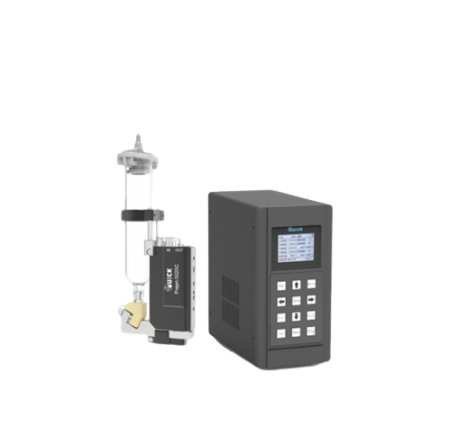

QUICK P3020C Piezoelectric jet valve (0.01-0.7Mpa)
Manufacturer: QUICK Model: P3020C - Contact
Materials of wetted parts: stainless steel，PEEK
Max working frequency: 1000 Hz
Optimal feeding pressure: 0.01～0．7Mpa
Diameter of smallest point: 0.2mm
Optimal range of viscosity: 1～200000Cps
Dimensions: 77mm×25mm×126mm
Weight: 400g
Main body of valve: stainless steel
Seal: corrosion-resistant and heat-resistant materials
Max heating temperature: Room temperature-180℃
Features:
High precision：using advanced piezoelectric drive, highly consistent dispensing, minimum diameter of single point is 0.2mm, minimum amount of dispensing is 2nL；
High speed：highest stable dispensing frequency is 500Hz, maximum instantaneous jet frequency is 1000Hz, the valve can be switched on and off in a short period of time for short dispensing cycle, improving productivity
High consistency：advanced piezoelectric control system, the pin can maintain a stable impact force during operation, reducing scattering on dispensing straight lines, arcs, and irregular shapes, for highly consistent point of dispensing
High flexibility：intelligent control system, with automatic position calibration for the pin and nozzle, easy to operate, can perform coating on uneven surfaces, with wide range of applications, unique design of valve body, coating quality is outstanding
Datasheet
