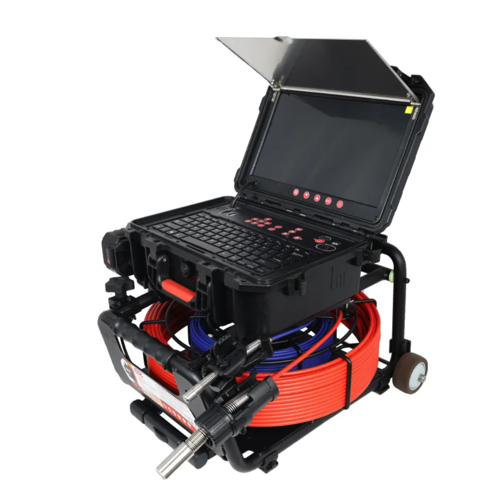

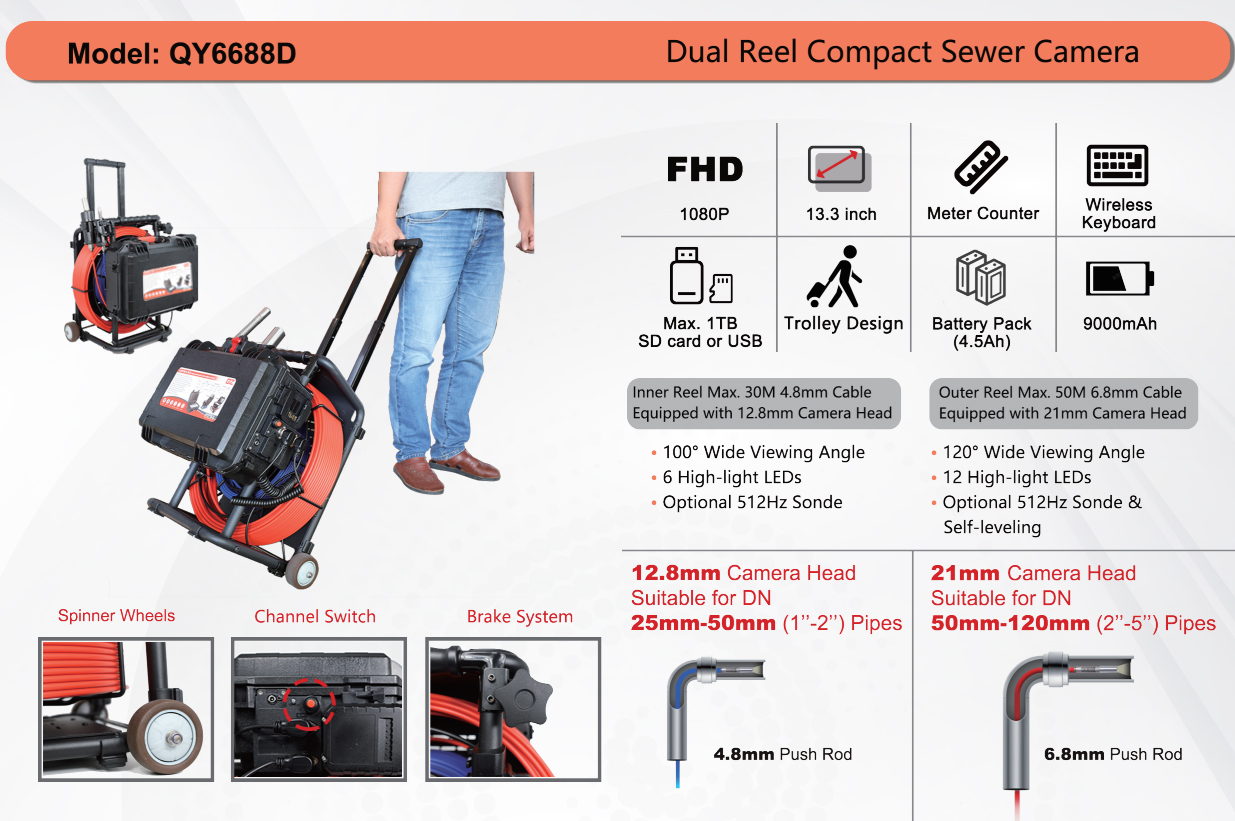

Qyteco QY6688D Dual Reel Compact Sewer Cameras (13.3" 21/12.8mm Camera, 1920*1080, 30M 4.8mm/50M 5.3/6.8mm Cable)
Manufacturer: Qyteco Model: QY6688D - Contact
Kind: Dual Reel Compact Sewer Cameras
Sensor Size: 1/4'' COMS(12.8mm camera head) , 1/3'' COMS(21mm camera head)
Application: Water Mains, Sewer, Pipe Inspection, Central Air Conditioning
Feature: 120° Wide Viewing Angle(21mm head) , 100°Wide Viewing Angle(12.8mm)
Video Capture System: CMOS
Horizontal Resolution: 21mm-1920*1080 , 12.8mm-1920*1080
Camera head: 12.8/21mm 304 stainless steel
Inner Cable: 30M 4.8mm Cable
Equipped: 12.8mm Camera Head 1"- 2" (30mm——60mm)
Outer cable: 50M 5.3/6.8mm Cable
Equipped: 21mm Camera Head 2"- 5" (50mm——125mm)
Optional: 512 Hz sonde and Self-leveling
Battery Pack (Optional Part)
4 Level Battery Indication
2 hours of charging, 9 hours of using
Voltage: 18.5～20.5V (MAX)
Capacity: 4.5Ah
Energy: 92.5W/H
Super Charger (Optional Part)
Input voltage: AC110V~240V
Frequency: 50~60Hz
Output power: 84W
Output voltage: DC-21V
Output current: 4A
Packing List
1. Metal frame X 1
2. Inner cable reel 30M 4.8mm with 12.8mm camera head X 1
3. Outer cable reel 50M 5.3mm with 21mm camera head X 1
3. Control box with DVR & wireless keyboard X 1
4. Connection cable X 2
5. Screwdriver X 1
6. 46/78mm skid for 21mm camera head X 1
25mm skid for 12.8mm camera head X 1
7.Screw and nut X 7
8.Waterproof ring X 12
9. User Manual X 1
10. Pothook X 2
11. DC12V Power supply X1
12. Car charger X 1
13. AV cable X 1
