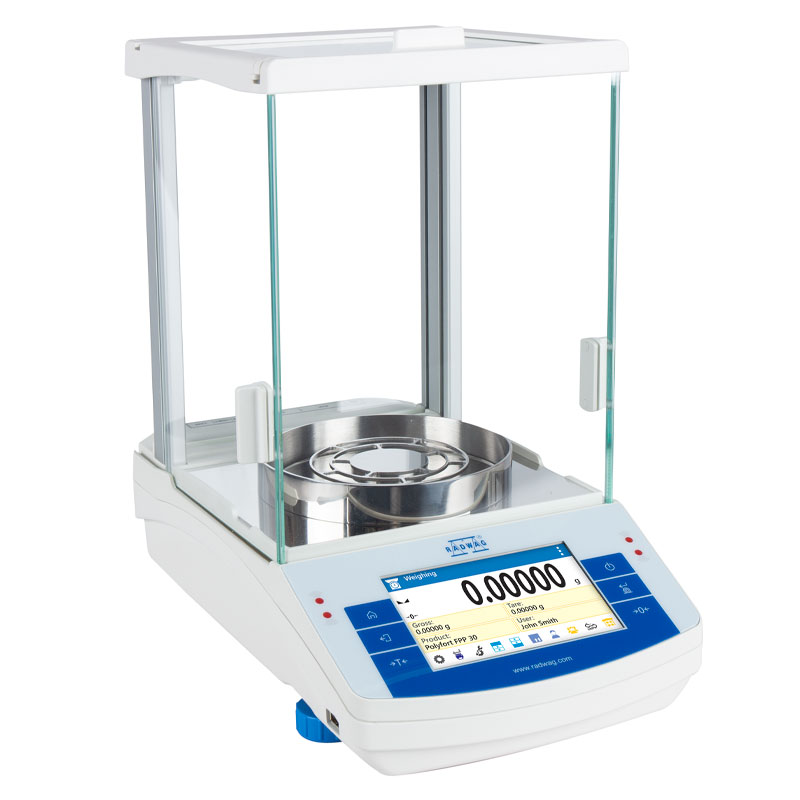

RADWAG AS 60/220.X2 PLUS Analytical Balance (60/220 g, 0.01 / 0.1 mg)

Metrological parameters

Maximum capacity [Max]: 60/220 g

Minimum load: 1 mg

Readability [d]: 0.01 / 0.1 mg

 Verification unit [e]: 1 mg

Tare range: - 220 g

Standard repeatability [5% Max]: 0.01 mg

Standard repeatability [Max]: 0.06 mg

Standard minimum weight (USP): 20 mg

Standard minimum weight (U=1%, k=2): 2 mg

Permissible repeatability [5% Max]: 0.02 mg

Permissible repeatability [Max]: 0.1 mg

Linearity: ± 0.05/0.2 mg

Stabilization time: 2s

Adjustment: internal (automatic)

OIML Class:  I

Physical parameters

Leveling system: semiautomatic  LevelSENSING

Display: 5″ graphic colour touchscreen

Weighing chaber door: manual

Delivery components: Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover

Weighing chamber dimensions: 190×190×222mm

Weighing pan dimensions: ø90 openwork pan + ø85 (option) mm

Net weight: 7.3kg

Gross weight: 10.5 kg

Protection class: IP 43

Touchfree operation: 2 IR Sensors

Communication interface

Communication interface: RS232¹, 2×USBA (interchangeable), USBB, WiFi®, Ethernet

Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.8A max

Power consumption max.: 4 W

Operating temperature: +10 — +40 °C

Ambient conditions monitoring (option): THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity: 40% — 80%
