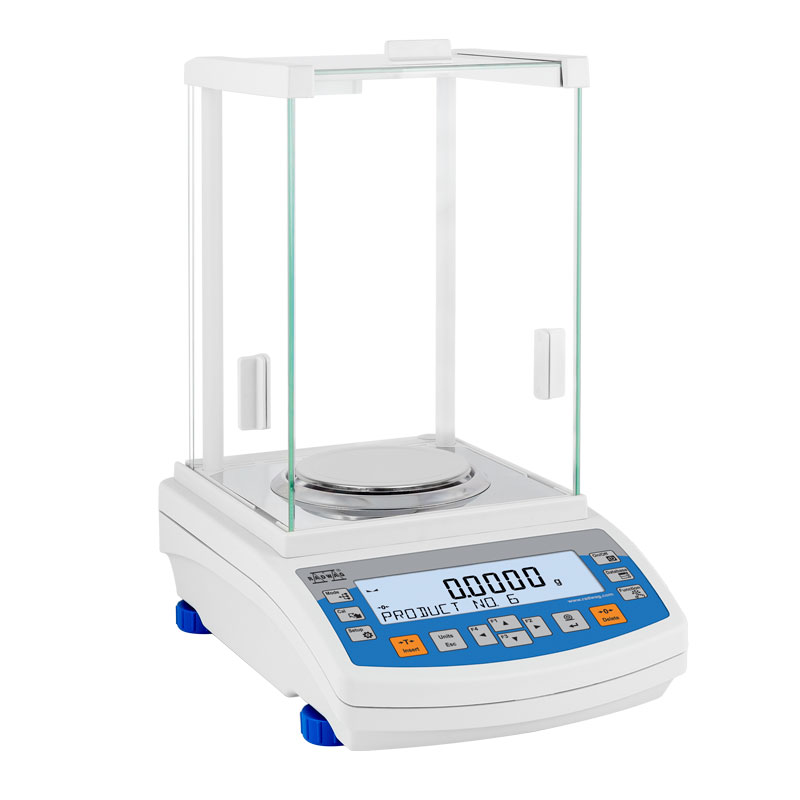

RADWAG AS 82/220.R2 PLUS Analytical Balance (82/220g, 0.01/0.1 mg)

Metrological parameters

-Maximum capacity [Max]: 82/220 g

-Minimum load: 1 mg

-Readability [d]: 0.01 / 0.1 mg

-Verification unit [e]: 1 mg

-Tare range: -220 g

-Standard repeatability [5% Max]: 0.012 mg

-Standard repeatability [Max]: 0.08 mg

-Standard minimum weight (USP): 24 mg

-Standard minimum weight (U=1%, k=2): 2.4 mg

-Permissible repeatability [5% Max]: 0.02 mg

-Permissible repeatability [Max]:0.1 mg

-Linearity: ±0.05/0.2 mg

-Stabilization time: 2 s

-Adjustment: internal (automatic)

-OIML Class: I

Physical parameters

-Leveling system: manual

-Display: LCD (backlit)

- Weighing chamber doors: manual

-Delivery components: Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover.

-Weighing pan dimensions: ø90 open-work pan + ø85 (option) mm

- Net weight: 7.3 kg

- Gross weight: 10.5 kg

- Protection class: IP 43

Communication interface

-Communication interface: 2×RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi® (option)

-Electrical parameters: Power supply

- Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

- Balance: 12 – 15V DC 0.4A max

Environmental conditions

-Operating temperature: +10 — +40 °C

- Relative humidity: 40% — 80%
