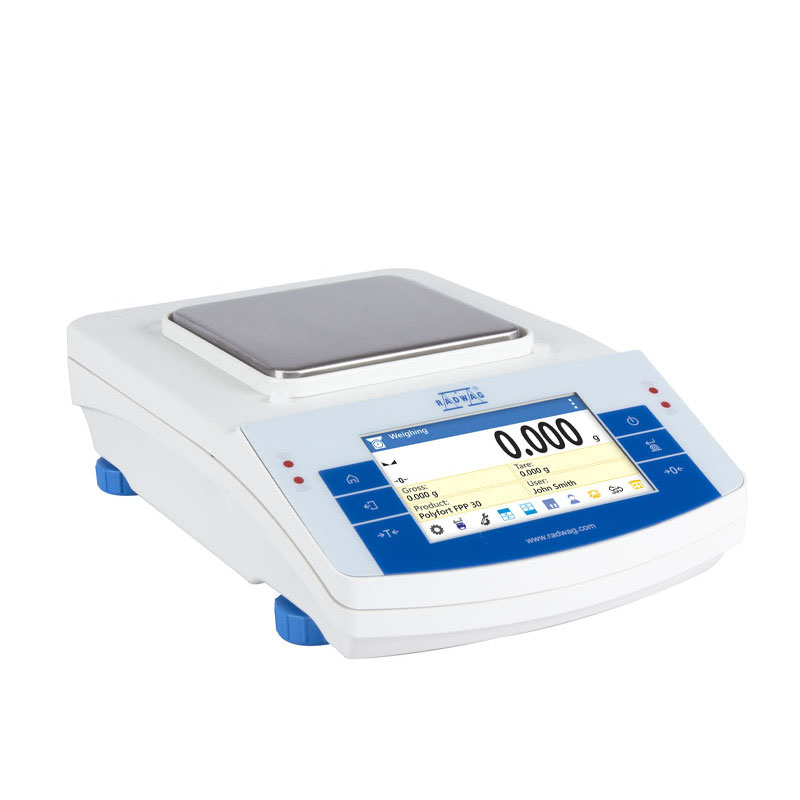

RADWAG PS 360.X2 Precision Balance (360 g, 1mg)

Metrological parameters

Maximum capacity [Max]: 360 g

Minimum load: 20mg

Readability [d]: 1 mg

Verification unit [e]: 10mg

Tare range: - 360 g

Standard repeatability [5% Max]: 0.5 mg

Standard repeatability [Max]: 1  mg

Standard minimum weight (USP): 1g

Standard minimum weight (U=1%, k=2): 0.1 g

Linearity: ±2 mg

Stabilization time: 2 s

Adjustment: internal (automatic)

OIML Class: II

Physical parameters

Leveling system: manual

Display: 5″ graphic colour touchscreen

Delivery components: Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Weighing pan dimensions: 128×128 mm

 Net weight: 3.99 kg

 Gross weight: 5 kg

 Protection class: IP 43

 Touchfree operation: 2 IR Sensors

Communication interface

Communication interface: 2×RS232¹, USBA, USBB, Ethernet, WiFi®

Electrical parameters: Power supply

 Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

 Balance: 12 – 15V DC 0.8A  max

 Power consumption: 4 W

Environmental conditions

Operating temperature: +10 — +40 °C

 Ambient conditions monitoring (option): THBR 2.0 System, THBR BOX, THB P, THB W, THB S

 Relative humidity: 40% — 80%
