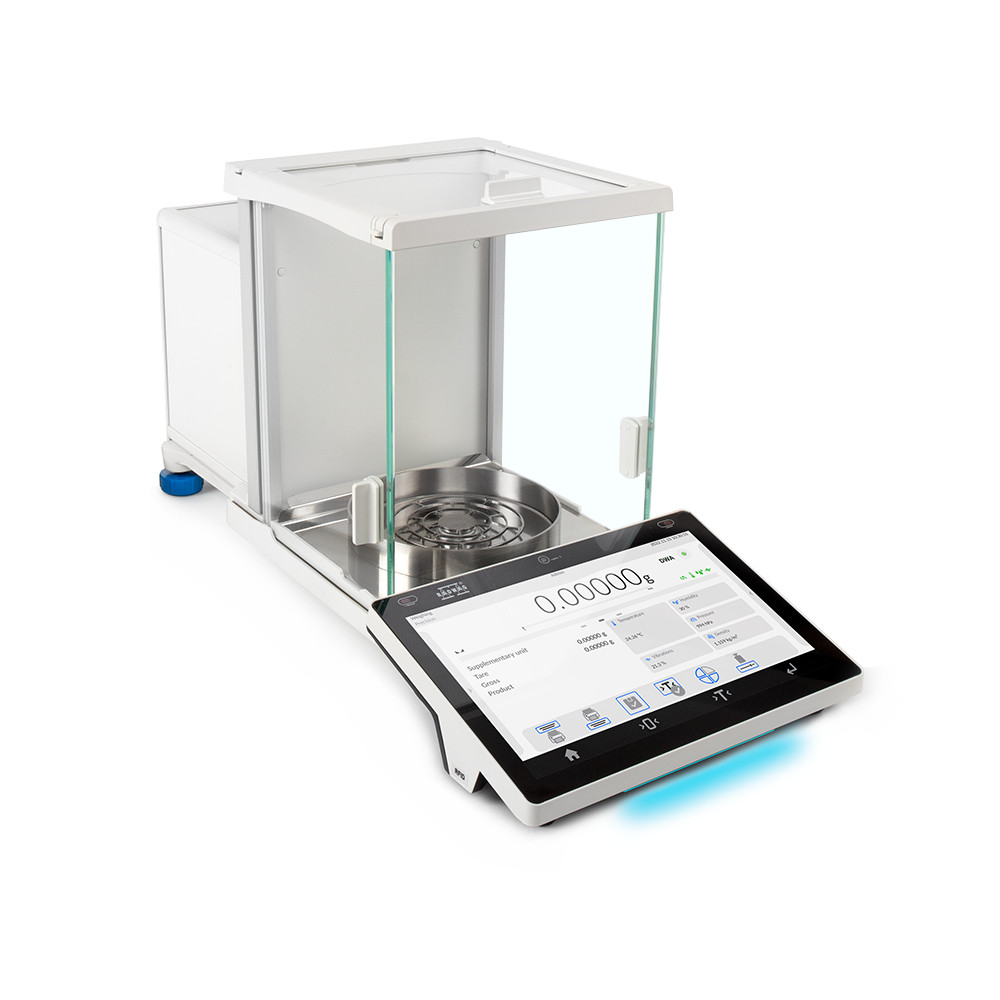

RADWAG XA 82/220.5Y Analytical Balance (82 / 220 g, 0.01 / 0.1 mg)

Metrological parameters

-Maximum capacity [Max]: 82 / 220 g

-Minimum load: 1mg

-Readability [d]: 0.01 / 0.1 mg

-Verification unit [e]: 1mg

-Tare range: -220g

-Standard repeatability [5% Max]: 0.005 mg

-Standard repeatability [Max]: 0.06 mg

-Standard minimum weight (USP): 10 mg

-Standard minimum weight (U=1%, k=2): 1 mg

-Permissible repeatability [5% Max]: 0.012 mg

-Permissible repeatability [Max]: 0.08 mg

-Linearity: ±0.06 / 0.2 mg

-Eccentric load deviation: 0.2 mg

-Sensitivity time drift: 1×10⁻⁶/Year×Rt

-Stabilization time: 4s

-Adjustment: internal (automatic)

-OIML Class: I

Physical parameters

-Leveling system: semi-automatic - LevelSENSING

-Display: 10″ graphic colour touchscreen

- Weighing chamber doors: manual

- Delivery components: Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

-Weighing pan dimensions: ø90 open-work pan + ø85 (option) mm

- Weighing chamber dimensions: 168×160×228 mm

- Net weight: 9.8 kg

- Gross weight: 16 kg

- Protection class: IP 43

Communication interface

-Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

-Electrical parameters: Power supply

- Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A

- Balance: 12 – 15V DC 1.6A max*

Environmental conditions

-Operating temperature: +10 — +40 °C

-Operating temperature change rate: ±0.3°C/1h (±1°C/8h)

- Relative humidity: 40% — 80%

- Relative humidity change rate: ±1%/h (±4%/8h)
