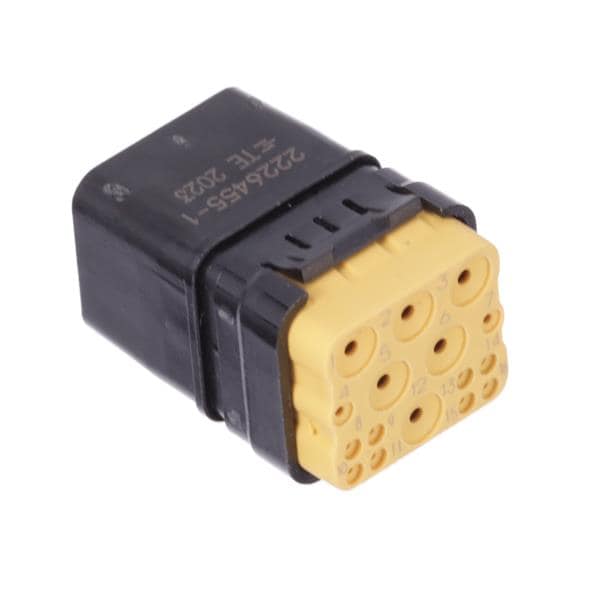

Raychem - TE Connectivity 2226455-1 Accessories DMC-M 15A SKT INSERT LC
Manufacturer: Raychem - TE Connectivity Model: 2226455-1 - Contact
Gender: Socket (Female)
Material: Thermoplastic (TP)
Unit Weight: 3 g
Contact Type: Socket
Accessory Type: Insert
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 16 AWG
Wire Gauge Min: 24 AWG
Wire Gauge Range: 24 AWG to 16 AWG
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Description/Function: Rectangular Contact Inserts
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
