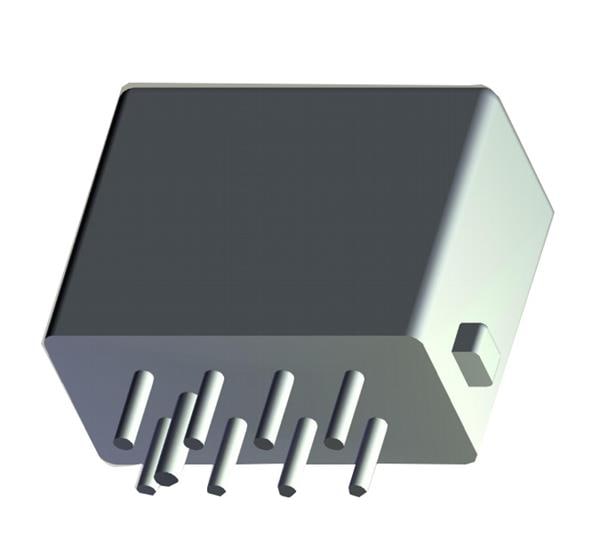

Raychem - TE Connectivity M83536/10-024M Mid Range Relay M83536/10-24M
Manufacturer: Raychem - TE Connectivity Model: M83536/10-024M - Contact
Width: 26.04 mm
Height: 25.65 mm
Length: 43.64 mm
Coil Type: Non-Latching
Unit Weight: 43.258 g
Coil Voltage: 28 VDC
Contact Form: DPDT (2 Form C)
Mounting Style: Through Hole
Coil Resistance: 320 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Cadmium Oxide (AgCdO)
Switching Voltage: 115 VAC, 28 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 10 A
