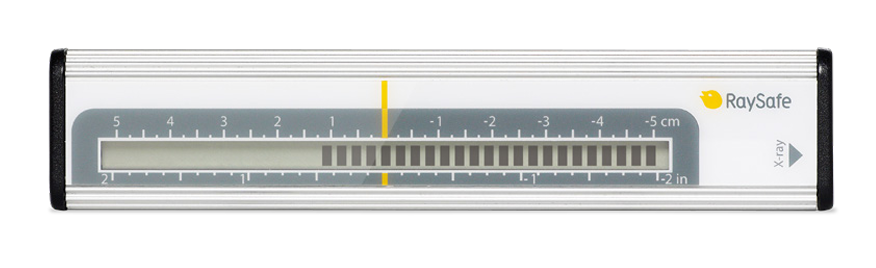

Direct X-ray ruler for X-ray/light field alignment and beam centering in R/F and mammography applications
General Specifications
Range: 5 cm (2 in)
Segment sensors/read out: 41 solid state sensors and corresponding LCD display segments
Segment resolution: 0.25 cm (0.1 in)
Function test: All segments should turn on when the RaySafe DXR+ is fully irradiated.
Power on: Automatic when exposed
Power off: Automatic after 1 min of inactivity
Reset: Automatic
Battery life time: 6-8 years (CR1632) based on 2000 exposures per year
Operating temperature: 10 to 40° C (50 to 104° F)
Storage temperature: 20 to +60° C (-4 to +140° F)
Size (H x W x L): 15 x 30 x 145 mm (0.59 x 1.18 x 5.71 in)
Weight: 75 gr (2.6 oz)
All specifications may change without notice.
Swedish patent 526928.
American patent 7313223.
Recommended Generator Settings
