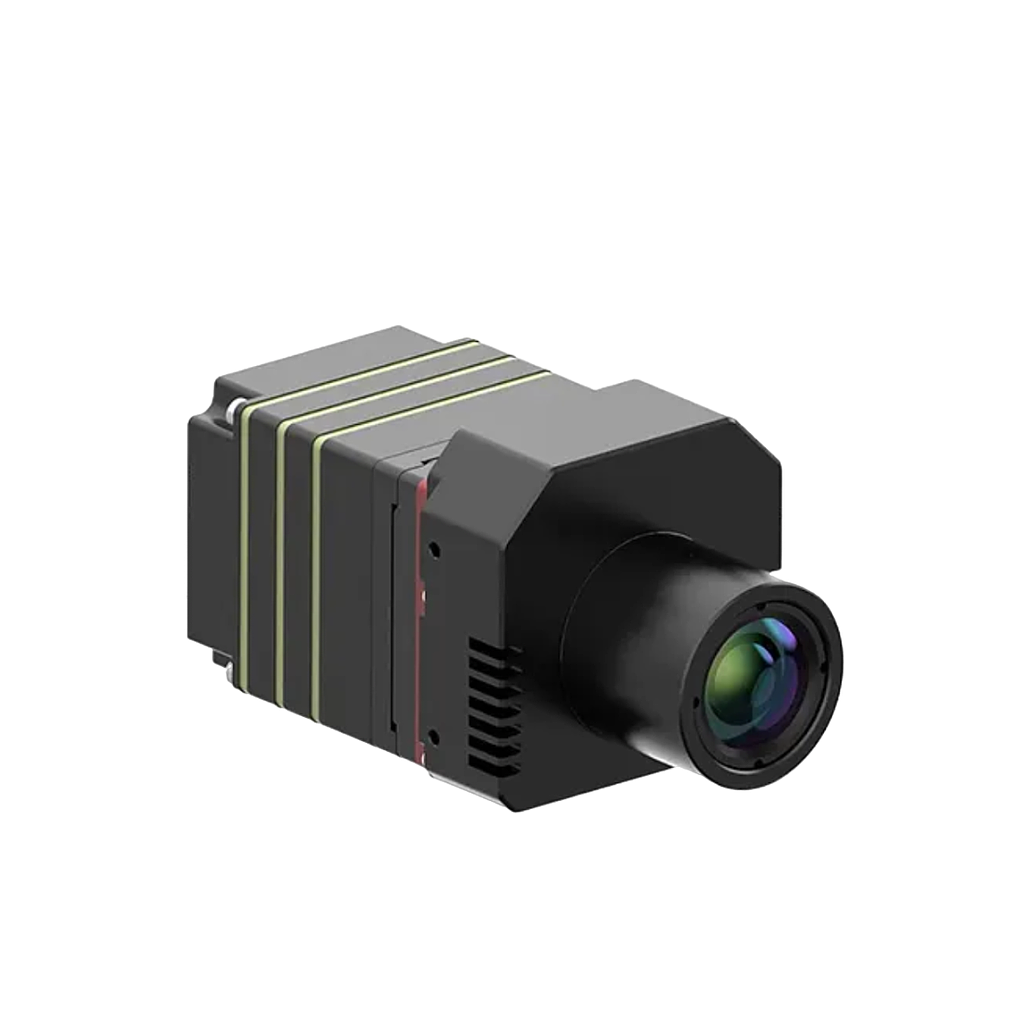

Raythink TN460 Fixed-mount Thermal Camera (7.5μm~14μm; -20℃ ~ 650℃)

Thermal Imaging Parameters

Detector: Uncooled VOx detector

Infrared Resolution: 640x512

Pixel pitch: 12μm

Spectral Band: 7.5μm~14μm

Thermal Sensitivity (NETD): ≤40mK

Temperature Measurement Function

Measurement Range: -20℃~+150℃, 0~650℃

Measurement Accuracy: ±2°C or ±2% of readings, whichever is greater.

Temperature Measurement Correction: Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance

Measurement Tool: Settings of measurement rules for a total of 12 points, 12 lines, and 12 areas,support isotherm setting

Temperature Width Stretch: Support temperature width stretch

Image and Video

Frame Rate: 25Hz

Palettes: 20 color palettes including black-hot, white-hot, iron red, rainbow, etc.

Video Standards: H.264, H.265

Thermal Image Capture: Support thermal image capture and secondary analysis

Mirror Image: Horizontal/Vertical/Diagonal

Digital Zoom: 1.0~8.0 continuous zoom (step size: 0.1)

System Interface

Communication interface: 1-channel audio input, 1-channel audio output. 1-channel RS485, supporting Pelco-D protocol expansion.

Audio Interface: 1-channel audio input, 1-channel audio output

Video Interface: 1-channel analog video

Alarm Interface: 1-channel alarm input, 1-channel alarm output

Storage Interface: Support TF card

Network Protocol: IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP

Interface Protocol: Modbus TCP, ONVIF, GB28181, MQTT

Device Specifications

Operating Temperature: -40°C~+70℃

Power supply mode: 9V-15V DC, optional POE power supply

Typical Power Consumption: 2.4W

Dimensions: 45mm×44mm×60mm (without lens)

Weight: About 110g (without lens)
