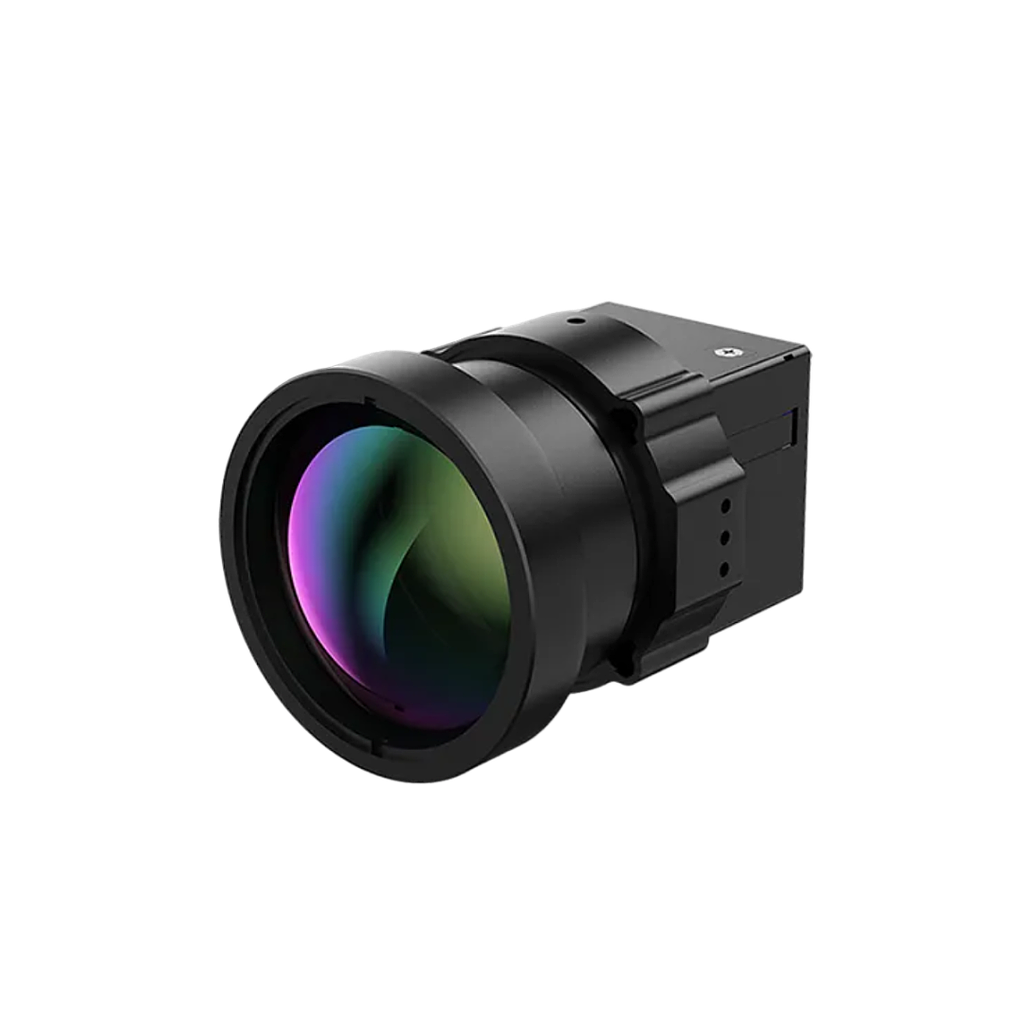

Raythink Turing L1280 Uncooled Infrared Module (1280×1024; 8~14μm)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 1280×1024

Detector Frame Rate: 30Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤50mK at 25℃,F#1.0

Image Adjustment

Brightness/Contrast Adjustment: Manual/Auto

Polarity: Black-hot/White-hot

Palette: support

Image Processing: TEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement., Vertical/Horizontal/Diagonal

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 4.0~5.5VDC, 4.1~5.5V DC supported by user extension components.

Typical Power Consumption at 25°C Without Extension :0.9W

Interface

Digital Video: 14Bit or 8Bit LVCMOS/MIPI, BT1120

Extension Components: USB 3.0

Temperature Measurement Performance

Temperature measurement series: -20°C~+150°C, 100℃~+650°C

Measurement Accuracy: Temperature measurement series: ±2°C or ±2% of reading (The greater shall prevail) @Ambient temperature of 15°C~35°C

Measurement Tool: Secondary analysis of points, lines, and areas

Physical Characteristics

Dimensions (Without lens and extension components): 29mm × 29 mm × 18.9mm

Weight (3.2mm, without extension components): 24.5g

Lens Model: 10mm,35mm,50mm,75mm

Environment Adaptability

Operating Temperature: -40°C~+70°C

Storage Temperature: -45℃～+80℃

Humidity: 5 ~ 95%, non-condensing
