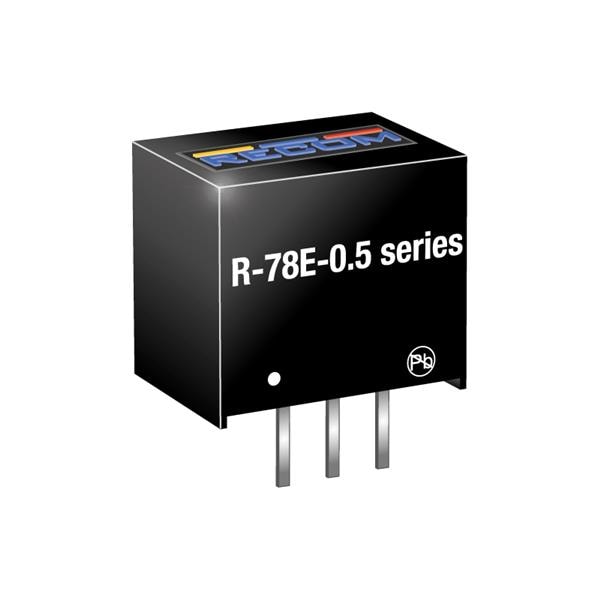

RECOM Power R-78E3.3-0.5 Non-Isolated / PoL 3.3V 500MA OUT THRU
Manufacturer: RECOM Power Model: R-78E3.3-0.5 - Contact
Width: 8.5 mm (0.335 in)
Height: 10.4 mm (0.409 in)
Length: 11.6 mm (0.457 in)
Industry: Industrial
Compliance: EAC; IEC; RoHS
Efficiency: 75%
Unit Weight: 2 g
Output Power: 1.65 W
Mounting Style: Through Hole
Number of Outputs: 1 Output
Input Voltage - Max: 28 V
Input Voltage - Min: 6 V
Output Current-Channel 1: 500 mA
Output Voltage-Channel 1: 3.3 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
