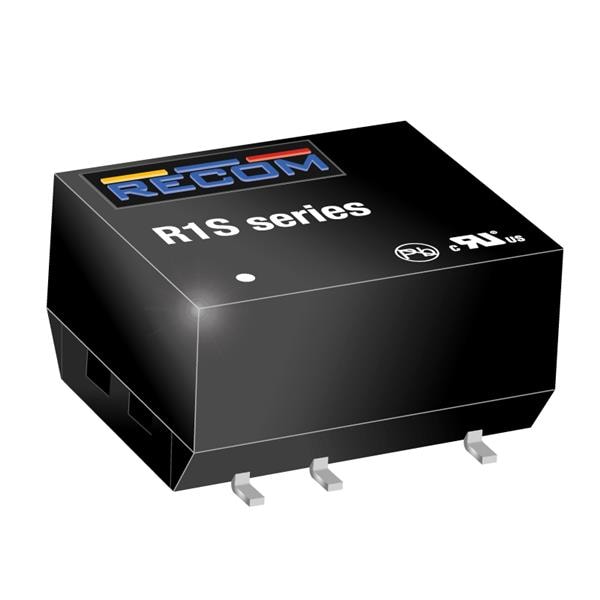

RECOM Power R1S12-1205 Isolated 1W DC/DC 1kV UNREG 12Vin 5Vout
Manufacturer: RECOM Power Model: R1S12-1205 - Contact
Width: 10.7 mm
Height: 7 mm
Length: 15.24 mm
Industry: Industrial
Compliance: IEC; RoHS; UL
Efficiency: 78%
Unit Weight: 1.200 g
Output Power: 1 W
Input Voltage: 10.8 V to 13.2 V
Mounting Style: SMD/SMT
Isolation Voltage: 1 kV
Number of Outputs: 1 Output
Input Voltage - Max: 13.2 V
Input Voltage - Min: 10.8 V
Input Voltage, Nominal: 12 V
Output Current-Channel 1: 200 mA
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
