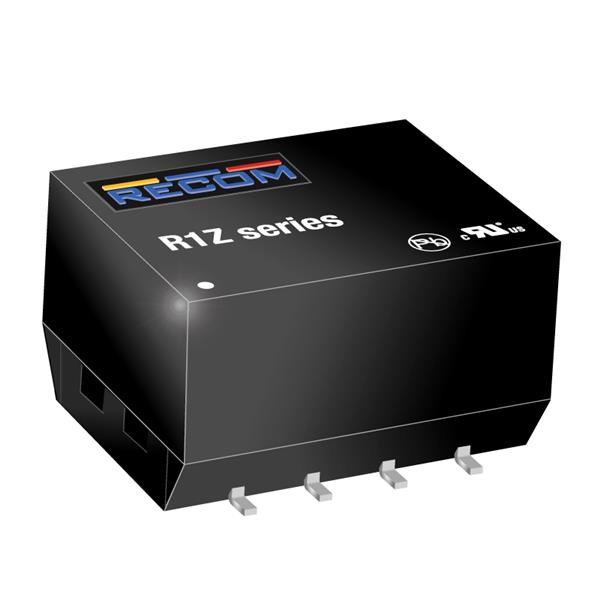

RECOM Power R1Z-1509 Isolated CONV DC/DC 1W 15VIN 09VOUT
Manufacturer: RECOM Power Model: R1Z-1509 - Contact
Width: 10.7 mm
Height: 9 mm
Length: 15.24 mm
Industry: Industrial
Compliance: IEC; RoHS; UL
Efficiency: 60%
Unit Weight: 1.600 g
Output Power: 1 W
Input Voltage: 14.25 V to 15.75 V
Mounting Style: SMD/SMT
Isolation Voltage: 1 kV
Number of Outputs: 1 Output
Input Voltage - Max: 15.75 V
Input Voltage - Min: 14.25 V
Input Voltage, Nominal: 15 V
Output Current-Channel 1: 111 mA
Output Voltage-Channel 1: 9 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
