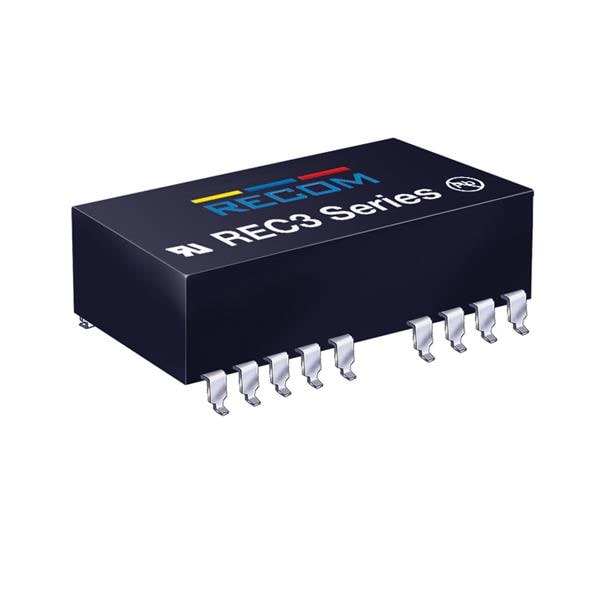

RECOM Power REC3-2412SRW/H6/A/SMD Isolated 3W DC/DC 6kV REG 2:1 18-36Vin 12Vout
Manufacturer: RECOM Power Model: REC3-2412SRW/H6/A/SMD - Contact
Width: 19.9 mm
Height: 11.2 mm
Length: 32 mm
Industry: Medical, Industrial
Unit Weight: 13 g
Output Power: 3 W
Input Voltage: 18 V to 36 V
Mounting Style: SMD/SMT
Isolation Voltage: 6 kV
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 24 V
Output Current-Channel 1: 250 mA
Output Voltage-Channel 1: 12 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
