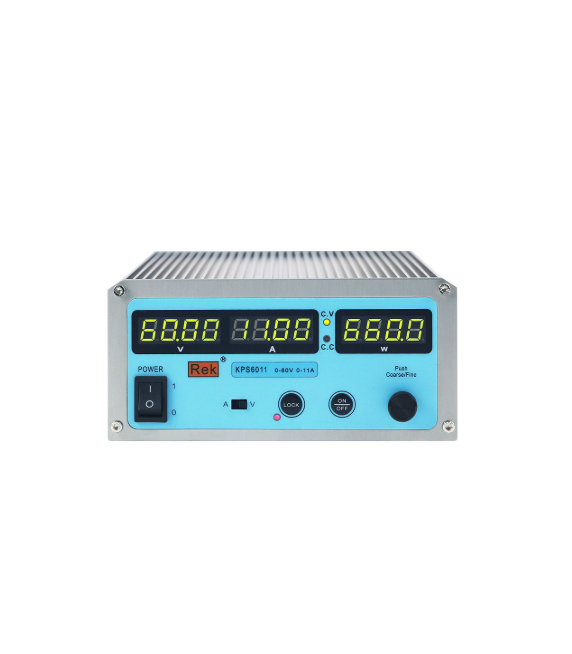

Rek KPS6011 Switching Power Supply (60V, 11A)

Operating Voltage Range: 170/264Vac

Operating Frequency Range: 45-65HZ

Output Voltage Range: 0-60V

Output Current Range: 0-11A

Efficiency (20 Full Load): ≥89%

Full Load Input Current (220VAC):  ≤3.35A

No Load Input Current (220VAC): ≤180mA

Voltmeter Accuracy: ≤0.3%+1digits

Ammeter Accuracy: ≤0.3%+2digits

Power Meter Accuracy: ≤0.6%+3digits

Constant Pressure State

Load Regulation Rate (0 ~ 100%): ≤30mV

Input Voltage Regulation Rate (198 ~ 264Vac): ≤10mV

Ripple Noise（Peak-Peak）: ≤30mV

Ripple Noise（R.M.S）: ≤3mV

Set Accuracy: ≤0.3%+10mV

Instantaneous Response Time(50%-10% Rated Load): ≤1.0ms

Constant Current State

Load Regulation Rate (90%-10% Rated Voltage): ≤50mA

Input Voltage Regulation Rate (198 ~ 264Vac): ≤20mA

Ripple Current Noise (P-P): ≤30mAp-P

Setting Accuracy: ≤0.3%+20mA

Size(Width * Height * Depth): 160*75*215mm

Net Weight: 2KG
