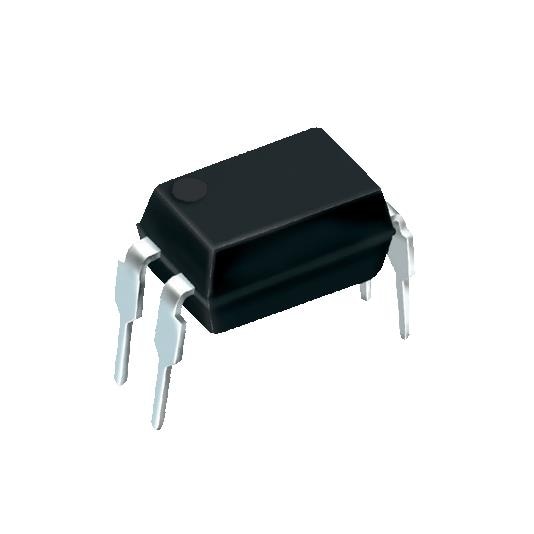

Renesas Electronics PS2561-1-V-A Transistor Output Optocouplers SGL Tr DC BSI Couplr

Width: mm

Height: mm

Length: mm

Fall Time: 5 us

Rise Time: 3 us

Output Type: NPN Phototransistor

Unit Weight: 242 mg

Configuration: 1 Channel

Mounting Style: Through Hole

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 80 mA

Vf - Forward Voltage: 1.4 V

Vr - Reverse Voltage: 6 V

Current Transfer Ratio: 80 %

Pd - Power Dissipation: 150 mW

Maximum Collector Current: 50 mA

Current Transfer Ratio - Max: 400 %

Current Transfer Ratio - Min: 80 %

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 300 mV
