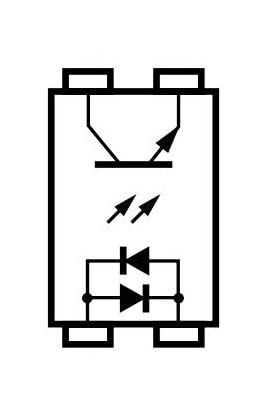

Renesas Electronics PS2565L-1-V-F3-A Transistor Output Optocouplers Optocoupler 4-pin DIP
Manufacturer: Renesas Electronics Model: PS2565L-1-V-F3-A - Contact
Width: mm
Height: mm
Length: mm
Fall Time: 5 us
Rise Time: 3 us
Output Type: NPN Phototransistor
Unit Weight: 260 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 10 mA
Vf - Forward Voltage: 1.17 V
Current Transfer Ratio: 200 %
Pd - Power Dissipation: 150 mW
Maximum Collector Current: 50 mA
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 80 V
Maximum Collector Emitter Saturation Voltage: 300 mV
