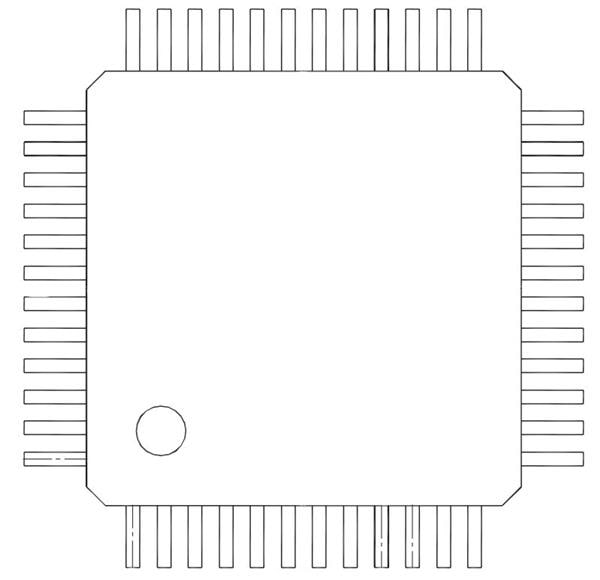

Renesas Electronics R5F52316AGFL#30 MCUs 32BIT MCU RX231 256K/32K QFP48
Manufacturer: Renesas Electronics Model: R5F52316AGFL#30 - Contact
Core: RXv2
Width: 7 mm
Height: 1.6 mm
Length: 7 mm
Data RAM Size: 32 kB
Data RAM Type: RAM
ADC Resolution: 12 bit
DAC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: CAN, I2C, SPI, USB
Mounting Style: SMD/SMT
Number of I/Os: 30 I/O
Watchdog Timers: Watchdog Timer
Processor Series: RX231
Program Memory Size: 256 kB
Program Memory Type: Flash
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 1.8 V
Number of ADC Channels: 8 Channel
Maximum Clock Frequency: 54 MHz
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
