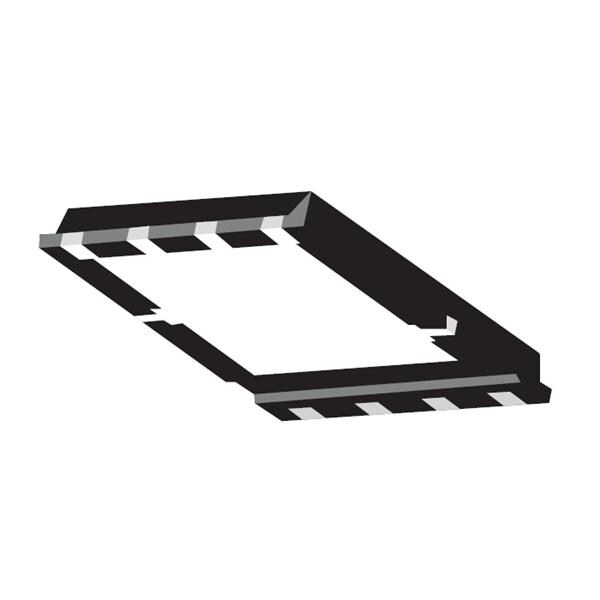

Renesas Electronics RJK03M1DPA-00#J5A MOSFETs BEAM2 Series FET 30V WPAK 2.5mOhm
Manufacturer: Renesas Electronics Model: RJK03M1DPA-00#J5A - Contact
Width: mm
Height: mm
Length: mm
Technology: Si
Unit Weight: 75 mg
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Qg - Gate Charge: 25 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 45 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Id - Continuous Drain Current: 50 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
Rds On - Drain-Source Resistance: 2.3 mOhms
Vds - Drain-Source Breakdown Voltage: 30 V
