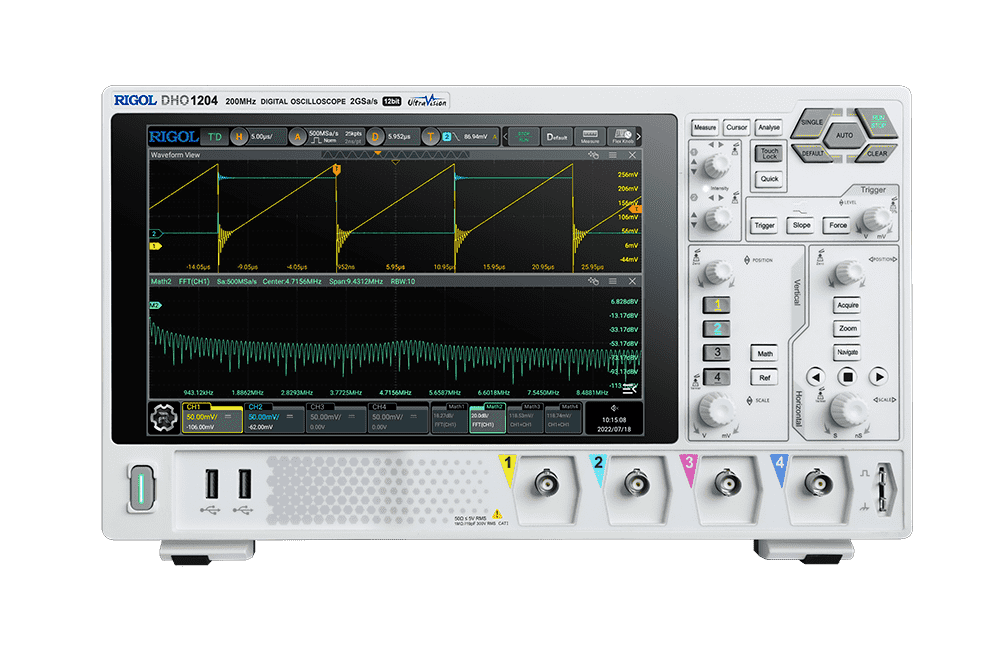

Technical Specifications
Analog Bandwidth (-3 dB): 200 MHz
No. of Input Channels: 2 + EXT
Rise Time (10% to 90%, typical): ≤1.75 ns
Sampling Mode: Real-time Sampling
Max. Sample Rate of Analog Channel:
+ Two-channel model: 2 GSa/s (single-channel[1]), 1 GSa/s (fullchannel[3])
+ four-channel model: 2 GSa/s (single-channel[1]), 1 GSa/s (half-channel[2]), 500 MSa/s (fullchannel[3])
Standard Memory Depth:
+ 25 Mpts (single-channel[1]), 10Mpts (half-channel[2]), 1Mpts (fullchannel[3])
Optional Memory:
+ Depth 50 Mpts (single-channel[1]), 25Mpts (half-channel[2]), 10Mpts (fullchannel[3])
Max. Waveform Capture Rate:
+ 30,000 wfms/s (in Vector Mode)
+ 500,000 wfms/s (in UltraAcquire Mode)
Vertical Resolution: 12 bits
Hardware Real-time Waveform Recording and Playing: Max. 500,000 frames
Peak Detection: Capture 2 ns glitches
LCD Size and Type: 10.1 capacitive multi-touch screen
Display Resolution: 1280×800
Power Supply.
Power Voltage: AC 100 V to 240 V, 50 Hz to 60 Hz
Power: 400 VA max (connect to various interfaces, USB, active probes)
Fuse: 3.15 A, T degree, 250 V
Environment
Temperature Range:
+ Operating: 0℃ to +50℃
+ Non-operating: -30℃ to +60℃
Humidity Range:
+ Operating:
below +30℃: ≤90% RH (without condensation)
+30℃ to +40℃, ≤75% RH (without condensation)
+40℃ to +50℃, ≤45% RH (without condensation)
+ Non-operating: below 60℃: ≤90% RH (without condensation)
Altitude:
+ Operating: below 3,000 m
+ Non-operating: Below 15,000 m
Mechanical Characteristics
Dimensions: 358.14 mm (W) x 214.72 mm (H) x 120.62 mm (D)
Rack Mount Kit: 5U
Weight[7]:
+ Package excluded: 3.8 kg
+ Package included: 5.37 kg
Non-volatile Memory
Data/File Storage:
+ Setup/Image: setup (*.stp), image (*.png, *.bmp, *.jpg)
+ Waveform Data: CSV waveform data (*.csv), binary waveform data (*.bin,), list data (*.csv), and reference waveform data (*.ref, *.csv, *.bin)
Internal Capacity: 8 GB
Reference Waveform: Displays 10 internal waveforms
Setting: Storage is limited by the capacity
USB Capacity: Supports the USB storage device that conforms to the industry standard
