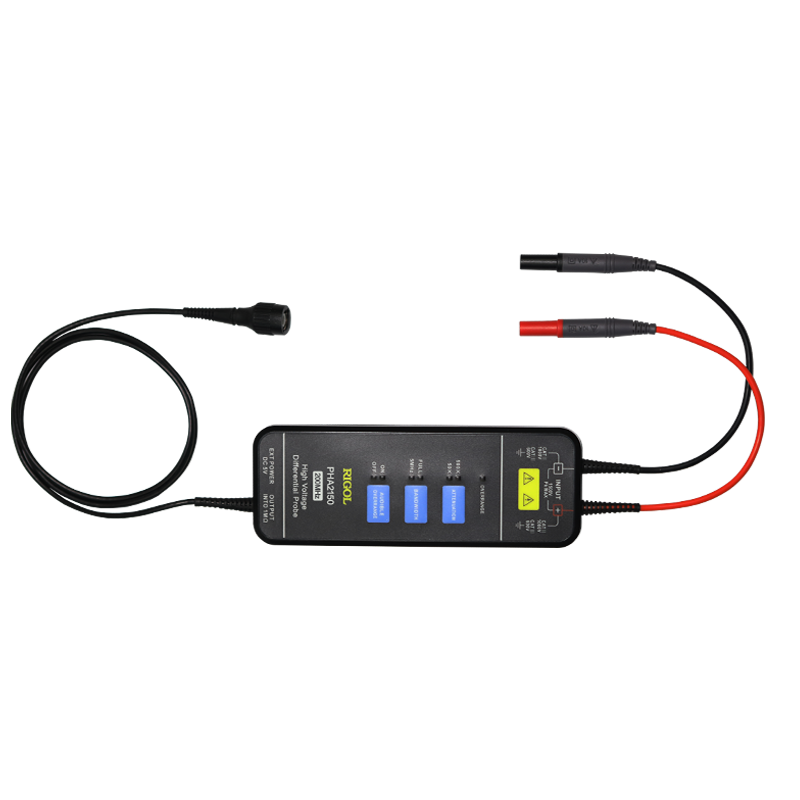

RIGOL PHA2150 High-Voltage Differential Probes (200MHz, 1500V)

Electrical Characteristics

Bandwidth (-3 dB):

50X: 160 MHz

500X: 200 MHz

Rise Time:

50X: ≤2.4 ns (Typical ≤2.2 ns)

500X: ≤2 ns (Typical ≤1.8 ns)

Accuracy: ±2%

Range (Attenuation): 50X/500X

Maximum Measurable Differential Voltage (DC + peak AC):

50X: ±150 V

500X: ±1500 V

Common Mode Voltage (DC + peak AC): ±1500 V

Maximum Input Voltage-to-Earth (Vrms):

600 V CAT III

1000 V CAT II

Input Impedance – Between each input and ground: 5MΩ±1%

Input Impedance – Between differential inputs: 10MΩ±1%

Input Capacitance – Between each input and ground: <4pF

Input Capacitance – Between differential inputs: <2pF

CMRR – DC: >80 dB

CMRR – 100 kHz: >60 dB

CMRR – 1 MHz: >50 dB

CMRR – 3.2 MHz: >30 dB

CMRR – 50 MHz: >26 dB

Input Referred Noise (Vrms):

50X: <50 mV

500X: <300 mV

Overrange Voltage Threshold Indicator:

50X: 153V±3V

500X: 1530V±30V

Delay: 21 ns

Bandwidth Limit (5 MHz): ≥-3 dB@5 MHz

Overrange Indicator (Red): Yes

Audible Overrange Alarm: Yes (ON/Off is available)

Auto Save: Yes

Output Impedance: 50 Ω

Safety Standards: EN61010-1:2010

EMC Standards:

EN61326-1:2013; EN61000-3-3:2013

EN61000-3-2:2006+A1:2009+A2:2009

Mechanical Characteristics

Probe Dimensions: 176 mm × 65 mm × 25 mm

Probe Body Weight: 216 g

Insulated Plunger Hook Clip: 152 mm × 50 mm × 13 mm

Alligator Clip: 106 mm × 43 mm × 16 mm

High-Voltage Differential Input Cable Length: 17 cm

Probe Output Cable Length: 1 m
