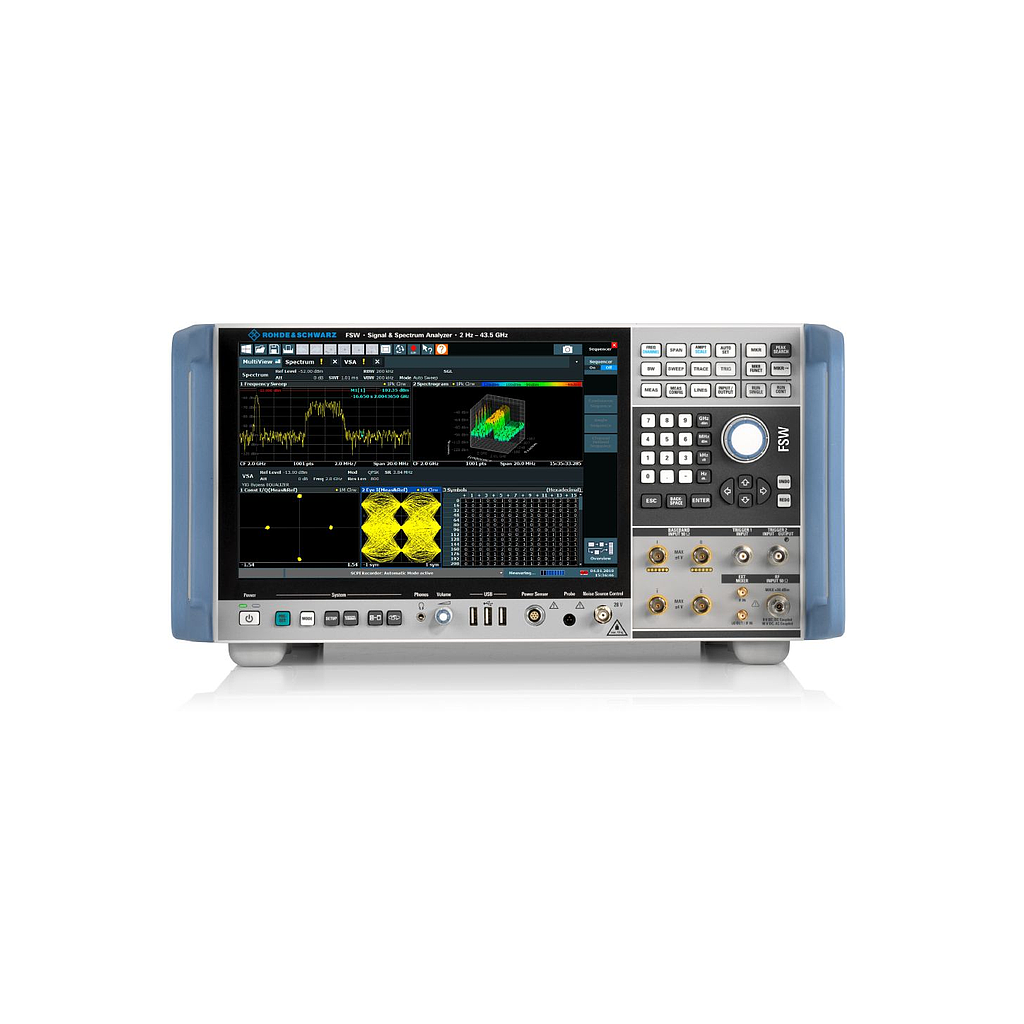

Rohde & Schwarz FSW67 Signal And Spectrum Analyzer (2 Hz - 67 GHz, 8312 MHz)

Frequency range:

DC coupled: 2 Hz to 67 GHz

AC coupled: 10 MHz to 67 GHz

Phase noise: < –136 dBc (1 Hz) (f = 1 GHz, 10 kHz offset)

Max. analysis bandwidth: 8312 MHz

Frequency readout

Marker resolution: 1 Hz

Uncertainty:

±(marker frequency × reference accuracy

+ 10 % × resolution bandwidth +

½ (span / (sweep points – 1)) + 1 Hz)

Number of sweep (trace) points

Default value: 1001

Range: 101 to 100001

Frequency counter resolution: 0.001 Hz

Count accuracy:

±(frequency × reference accuracy +

½ (last digit))

Display range for frequency axis: 0 Hz, 10 Hz to max. frequency

Resolution: 0.1 Hz

Maximum span deviation: ±0.1 %

*For detailed specifications, please refer to the datasheet.
